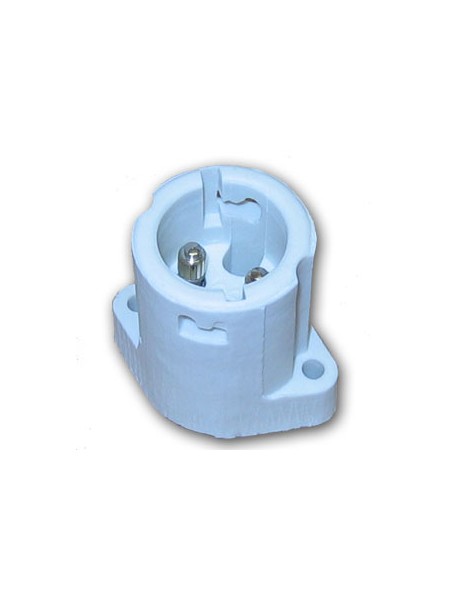

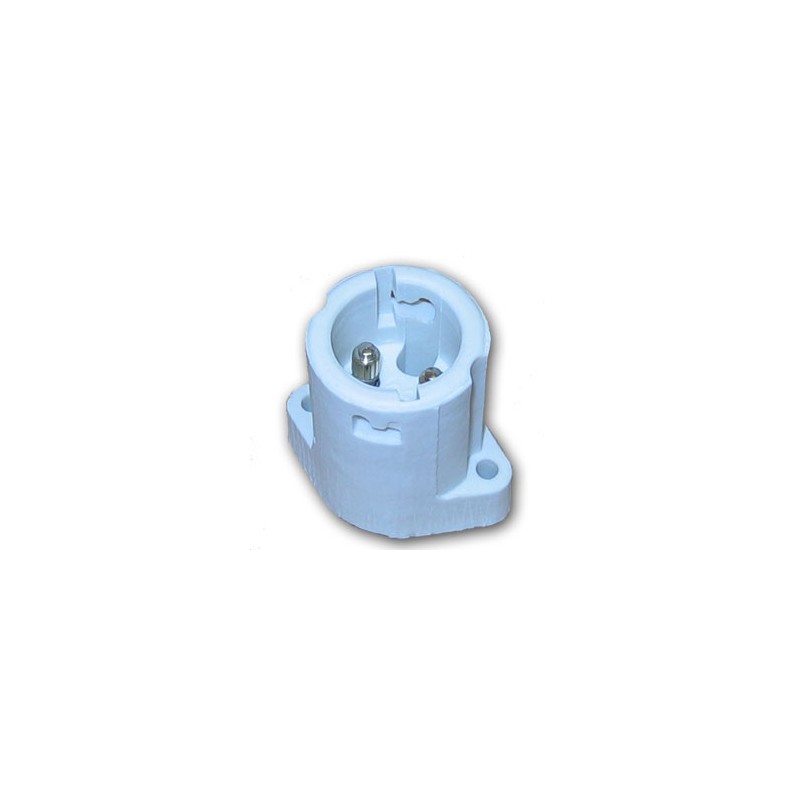

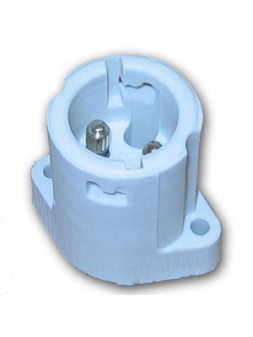

BY22D base Ceramic 4A 250v Lampholder
The French flag indicates the current stock in our warehouse in France, therefore immediately available. If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
Socket Type: BY22D
Socket Material: Ceramic
Rated current: 4A
Rated voltage: 250V
The BY22D socket is designed to accommodate bulbs with a BY22D base. Ceramic is a commonly used material for lampholders due to its heat resistant and electrical insulating properties. The BY22D ceramic socket is capable of withstanding a rated current of 4A and a rated voltage of 250V.
Minimum indication of the holes recommended for the passage of the cables (if necessary): possible fixing of the socket by two holes of Ø 3.6 mm with a center distance of 16 mm or 2 holes of Ø 4.5 mm with a center distance of 36mm.
4A 250V - Temp. maximum use: 250°.
Screw terminals - For 0.5 to 1 mm cable.
IP20.
External dimensions: Ø 32 x width 48 mm.
Nickel-plated brass contacts.
Normalized steel contact pressure springs.
Connection terminals to be screwed in nickel-plated brass, with non-blocking slotted head screws.
Data sheet
- FAMILY
- Accessoires
- Connectique
- Douilles, Kits & Adaptateur
- Diameter
- 32 mm
- Height
- 42 mm
- IP classification
- 20
- Current
- 4 A
- Width
- 45.5 mm
- Maximum temperature
- 250
- Weight
- 0.06 Kgs
- Length : cm
- width : 4.55 cm
- height : 4.2 cm
