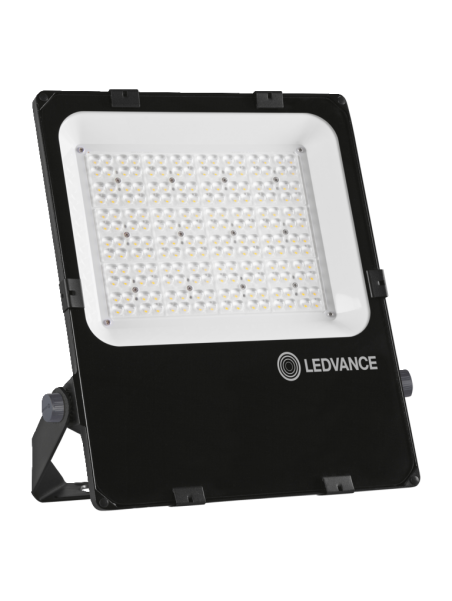

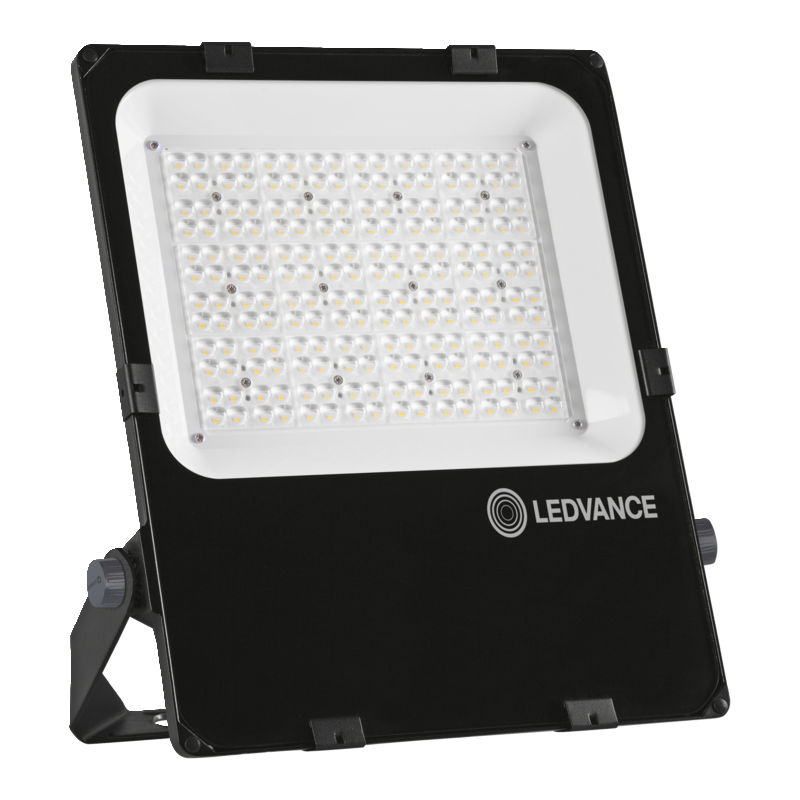

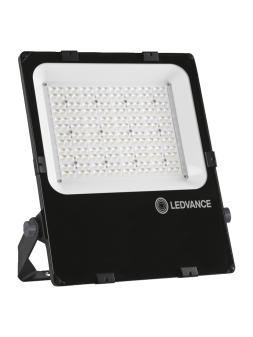

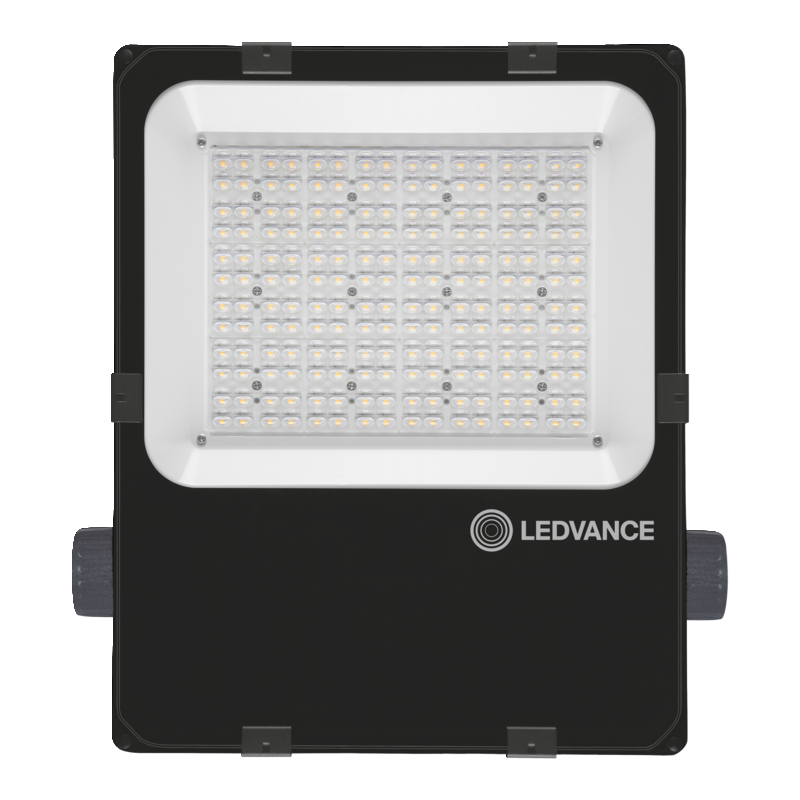

LED projector LDV FL PFM SYM R30 150w 3000K IP66 BLACK LEDVANCE
LDV FL PFM SYM R30 150W/3000K 18700lm IP66 NOIR Projecteur LEDVANCEIncluding 0.46 € for eco-contribution
The French flag indicates the current stock in our warehouse in France, therefore immediately available. If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
Product advantages
Energy savings of up to 90% compared to halogen lamp projectors
Energy savings of up to 45% compared to luminaires using conventional discharge lamps
Bright, sturdy and durable
Homogeneous light distribution and minimal glare
No luminous flux above the horizon line (ULR 0%) when mounted at 0° tilt
Hole to ensure ease of installation
5 year warranty
Product features
High luminous efficiency: up to 140 lm/W
Rotationally symmetrical light distribution for high mast lighting
Angle mounting (45°) and tilt up to 180°
Protection type: IP66
Shock resistance: IK08
Operating ambient temperature: -30°C + 50°C
High surge protection: up to 10 kV (L/N-PE), 6 kV (L-N)
Built-in membrane to prevent condensation inside the luminaire
Connection via 2 m cable, wiring required
Application areas
Direct replacement product for luminaires using HID lamps
Outdoor use (IP66)
Car park
Public areas
Industry
Sports facilities
Large area lighting
Panel D according to EN 60598-2-24 for fire risk commercial unit e.g. due to dust accumulation
Data sheet
- FAMILY
- Luminaires
- Implantation
- Mur
- Emplacement
- Applique
- Technology
- LED
- Power supply
- French sector
- Electrical protection class
- I
- Illumination color
- Blanc Chaud
- Average nominal lifespan
- 100000 H
- Lamp efficacy
- 125 Lm/W
- Manufacturer
- LEDVANCE
- Power factor
- 0.90
- Finition
- Noir
- Luminous flux
- 18700 Lm
- Frequency
- 50/60
- Product line
- Symétrique
- Dimmable
- Non
- Height
- 77.00 mm
- IP classification
- 66
- IK classification
- IK08 Résistance à un impact de 5 joules
- Color rendering indice (CRI)
- 80
- Width
- 330.00 mm
- Overall lenght
- 451.00 mm
- Certifications
- CE
ENEC
RG 1 Photobio 62471
TÜV - Operating range
- -30 +50 °C
- Power
- 150.00 w
- Power source
- Integrated
- Light source
- Integrated
- Temperature at the thread
- 650
- Color temperature
- 3000 K
- Input voltage
- 240 v
- Input voltage type
- AC
- Angle
- 125 °
- Weight
- 4.5 Kgs
- Eprel
- 1043741
- Length : 51.6 cm
- width : 13 cm
- height : 36.8 cm
