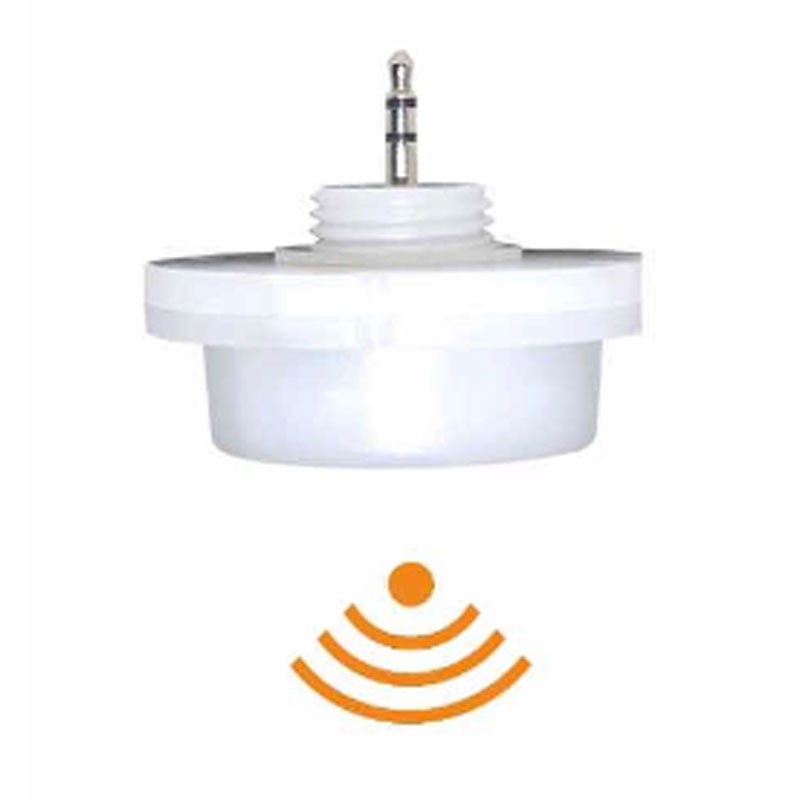

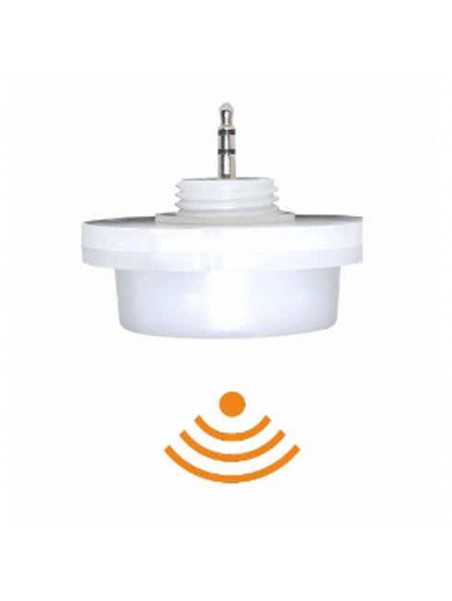

Daylight sensor module + IR motion detector for high bay UCU2
The French flag indicates the current stock in our warehouse in France, therefore immediately available. If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
Caracteristics:
Power : 100w
Power : 150w
Power : 200w
Input voltage : 12v
1. The working temperature of PIR infrared probe is -30°C~+70°C. The infrared probe can work in this temperature range, but the product test distance will be affected by the change of temperature.
2. Under different working temperature, the corresponding distance ratios are as follows.
* The PIR infrared sensor has the farthest detection distance under the temperature of -10°C ~ +33°C, and the detection range is 100%;
* The PIR infrared sensor has a small detection distance at +33°C ~ +45°C temperature, and the general
the distance reduction ratio is between 10% and 50%;
* When the temperature of the PIR infrared sensor is +45°C~+70v, the detection distance will be decrease rapidly, and the distance will be basically reduced to about 2 meters;
* The detection distance of the PIR infrared sensor will be small at the temperature of -10°C ~ -20°C, and the general distance reduction ratio is between 10% and 50%;
* When the temperature of the PIR infrared sensor is -20°C ~ -30°C, the detection distance decreases rapidly, and the distance will be basically reduced to about 2 meters;
3. In actual use, it is recommended that the working temperature be used within the range of -15°C ~ +40°C.
Data sheet
- FAMILY
- Accessoires
- Technology
- LED
- Divers connectique
- Détecteur de mouvement IR
Détecteur de mouvement et crépusculaire - Manufacturer
- SEIPRO
- Finition
- Blanc
- Manufacturer warranty (year)
- 5
- Power
- 100 w
- Input voltage
- 12 v

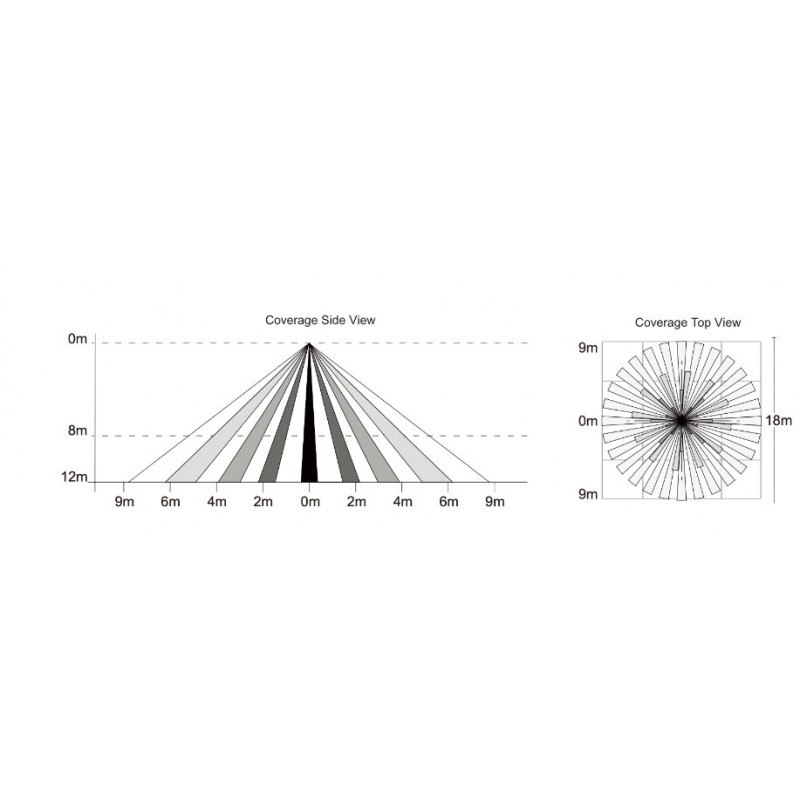

- Distance de détection
- 12
- Weight
- 0.1 Kgs
- Length : cm
- width : cm
- height : cm
