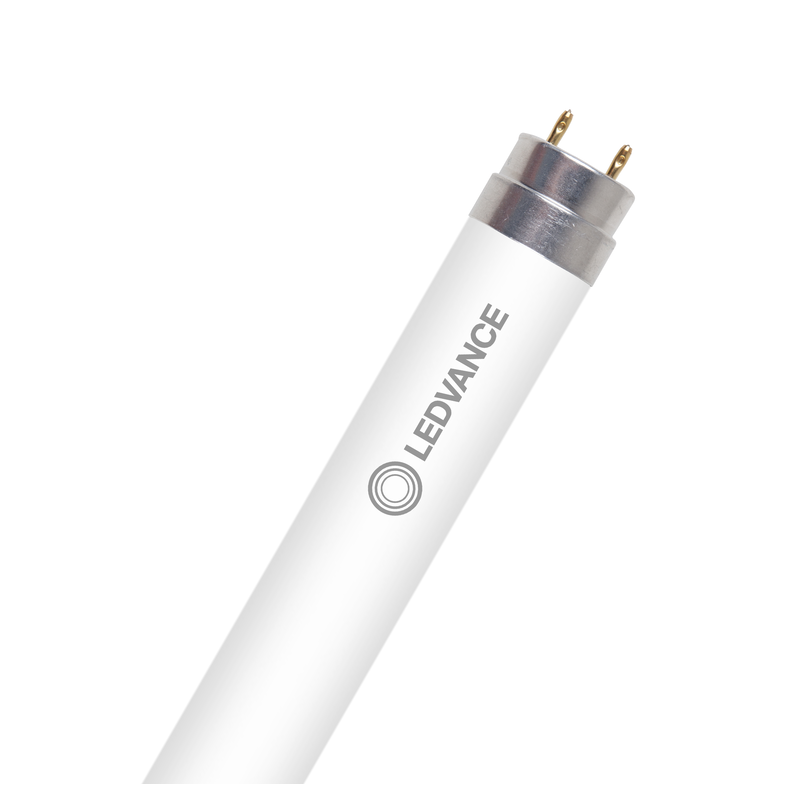

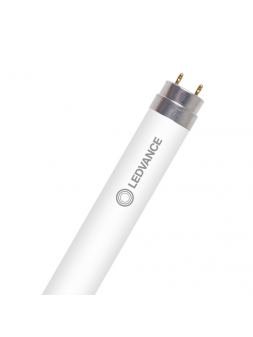

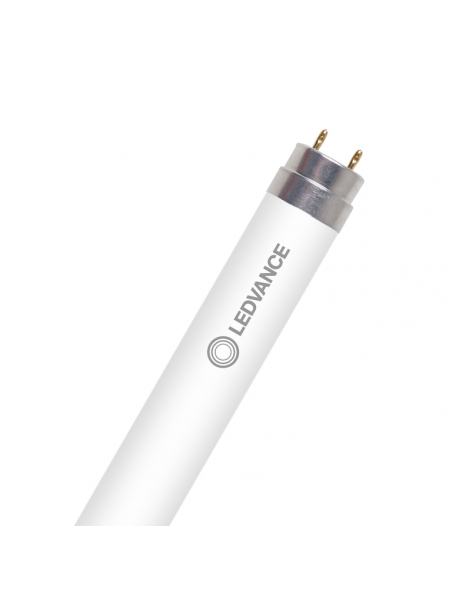

G13 Ext LED tube 23w = 58w 840 Dimmable on Dali power supply Glass 1500mm HT EM 220-240vLedvance
LEDVANCE LED Ext DIM Perf 58 Dépolie G13 3700lm 840 23WIncluding 0.29 € for eco-contribution
The French flag indicates the current stock in our warehouse in France, therefore immediately available. If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
Product Benefits
Simple upgrade to a dimmable LED system
Hassle-free application, no ballast compatibility check required
Suitable for emergency lighting (stand-alone battery pack)
Shatter protection thanks to special PET coating
No bending thanks to the glass tube
5 years warranty
Application areas
Industrial lighting (e.g. manufacturing plants, logistics centers, warehouses)
Linear lighting for offices, education, storage areas and retail
Shops, supermarkets
Product Features
Designed to power only with LED DRIVER LED EXTERNAL DALI TUBE
Glass lamp tube with shatter protection
Quality variation of 1…100%
High resistance to switching loads
Suitable for ambient temperatures of -20…+50°C
Safety tips
Operation possible in outdoor applications in luminaires suitable for humidity according to the technical data sheet and installation instructions.
The operating temperature range of the LED tube is limited. If in doubt regarding the suitability of the application, please measure the Tc max temperature on the product before installation.
Data sheet
- FAMILY
- Lampes
- Technology
- LED
- Power supply
- LED Driver
- Energy efficience label
- D
- Illumination color
- Blanc
- Base
- G13
- Switching cycle
- 200000
- Diameter
- 27 mm
- Average nominal lifespan
- 50000 H
- Lamp efficacy
- 160 Lm/W
- Equivalency
- 2x58
- Manufacturer
- LEDVANCE
- Power factor
- 0.90
- Luminous flux
- 3700 Lm
- Dimmable
- Oui
- IP classification
- 20
- Color rendering indice (CRI)
- 80
- Current
- 0.55 A
- Overall lenght
- 1500 mm
- Certifications
- CE
RG 0 Photobio 62471 - Operating range
- -20 +50 °C
- Protocol
- DALI
- Power
- 23 w
- Glass shade
- Opale
- Color temperature
- 4000 K
- Angle
- 190 °
- Weight
- 0.245 Kgs
- Série
- 730
- Energy consumption
- 23 Kwh/1000H
- Eprel
- 161825
- Length : 155.2 cm
- width : 19.7 cm
- height : 23.5 cm
