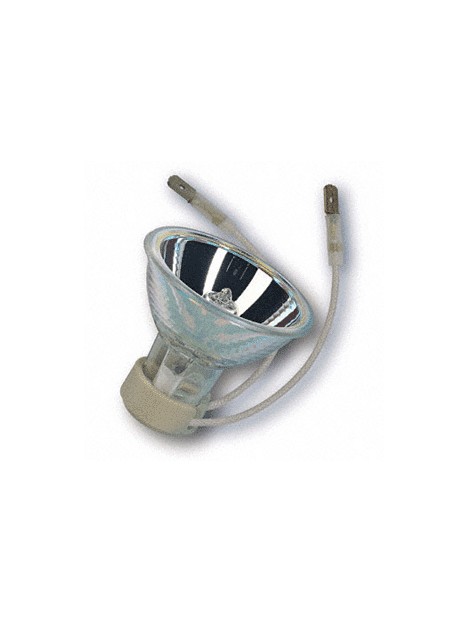

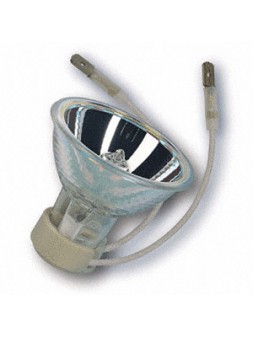

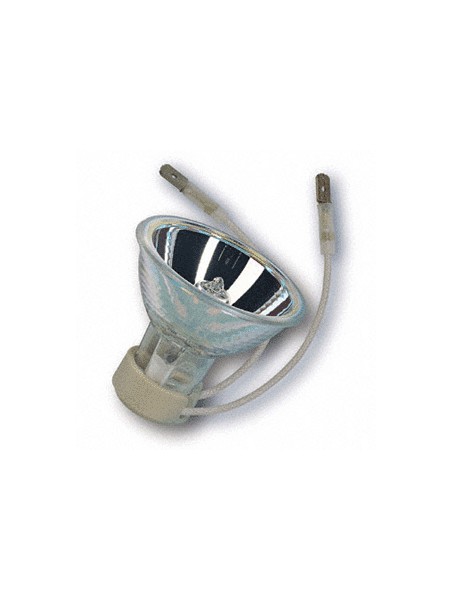

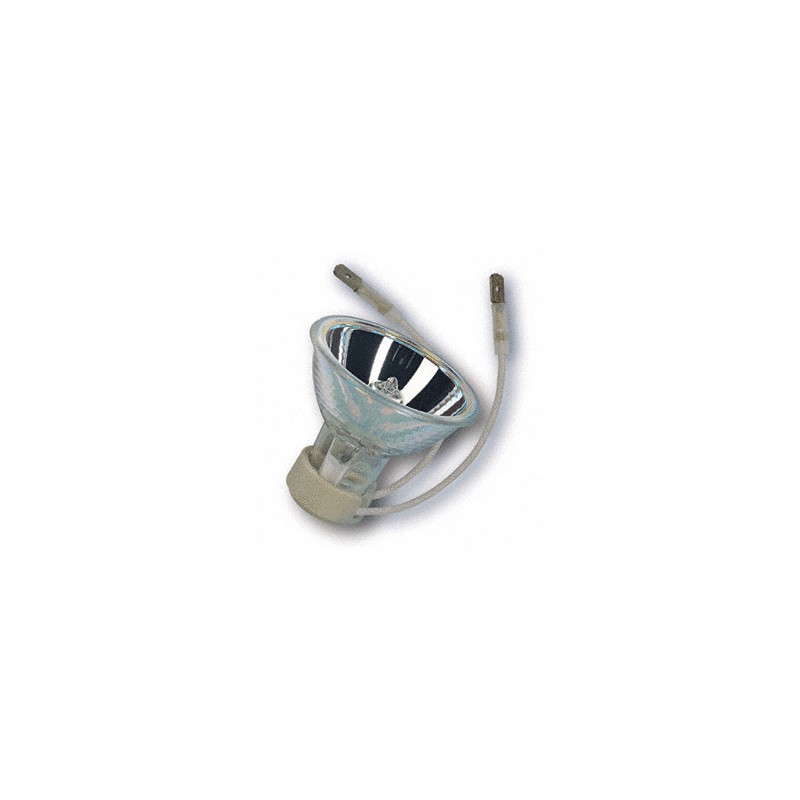

K23D Halogen Lamp 47x49 12v 50w 12999 Smooth Reflector Dr Fischer




















          8161300012999

















           	          €23.92


















              Tax included




















                             Hurry up! Only
                5
                 item(s) left in Stock!


            You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.




           	The French flag indicates the current stock in our warehouse in France, therefore immediately available.
            If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".



            Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.

Some suppliers do not wish to communicate their stocks beyond 200 pcs.

Some suppliers do not communicate their stocks.














































 Stock available immediately: 5









                            QUANTITY

                                                                                    1 to 9

                                                                                                   10 and +






                            UNIT PRICE (excVAT)
                                                        	                                	€19.93
                                                                                                    €18.93






                                UNIT PRICE (incVAT)
                                                                	                                    	€23.92
                                                                                                                €22.72



















Estimated shipping Day: 1 to 3 days





        Quantity































0




























































At your service










 QUANTITY DISCOUNT











 FREE SHIPPING















 SECURE PAYMENT

















 05 63 63 94 69
































Dr Fischer 12999


Traffic Halogen Fiber Optics 50W K23d 12V CL FAC


Halogen burner optically positioned in a lightweight high-gloss 50 mm dichroic reflector


Product Features




  1. Very sturdy and compact light source
    2.





  1. Corrosion- and heat-resistant flexible cables simplify lamps replacement
    2.





  1. Cables should be downwards to ensure that filament position is horizontal
    2.





  1. Deviations of burning position may lead to 30% shorter lifetime
    2.





  1. It is advisable, independent from the duty cycle, to replace lamps in a group replacement cycle of maximally one year for safety and functioning reasons. Lamp fixation should be done on the glass part and not on the ceramic part to avoid corrosion problems
    2.





  1. Do not use the rim of the reflector to clamp the lamps. Problems will arise due to tolerances in glass thickness
    2.





  1. Types for 6 mm and 10.2 mm diaphragm available. Lamp is optimised for a working distance of 42 mm
    2.




Product Benefits




  1. Allows a high-intensity beam with clearly defined beam spread
    2.





  1. Cool beam, with some 65% of the infrared radiation transmitted backwards
    2.




Application




  1. Fibre optic solutions
    2.





  1. Traffic matrix systems
    2.





  1. Variable message signs and DRIPs (Dynamic Route Information Panels)
    2.



Luminaires




  1. Must be used in a closed, dry and very well-ventilated luminaire
    2.




















        8161300012999

























Data sheet




FAMILY




Lampes



Plus




Auto/Moto/Camion



Technology




Halogène



Power supply




Special



Base




k23D



Diameter




47
									mm



Average nominal lifespan




3000
									H



Manufacturer




DR FISCHER



Luminous flux




350
									Lm



Dimmable




Non



Width




47
									mm



Overall lenght




49.7
									mm



Power




50
									w



Input voltage




12
									v



Weight




0.01
									Kgs














        New product



















                     1




                     0.01 Kgs








  • Length : 4.97 cm
    •

  • width : 4.7 cm
    •

  • height :  cm
    •
