End of stock
Non contractual photo
all light at your fingertips

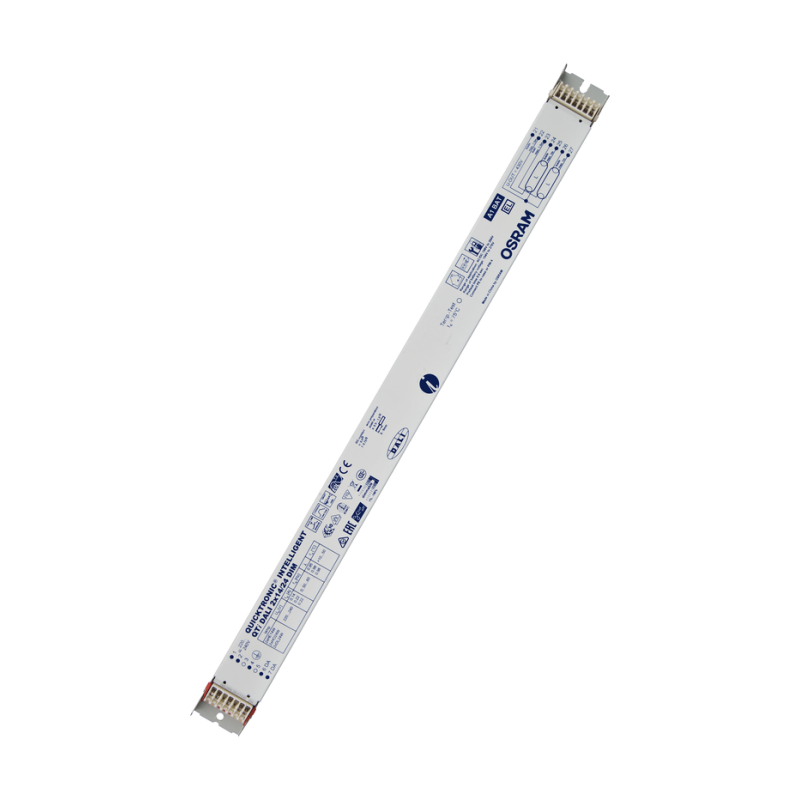

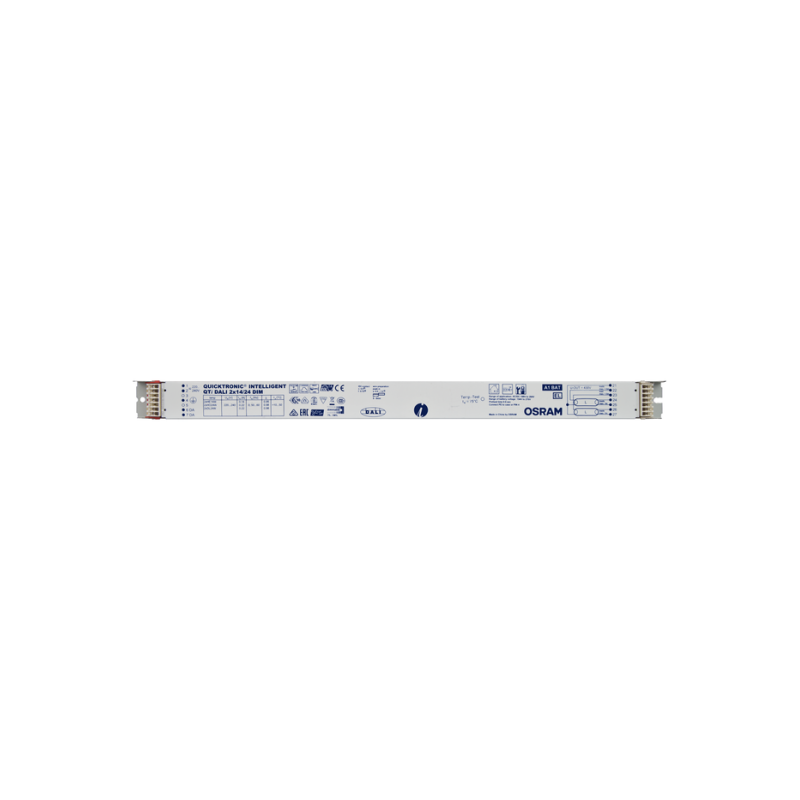

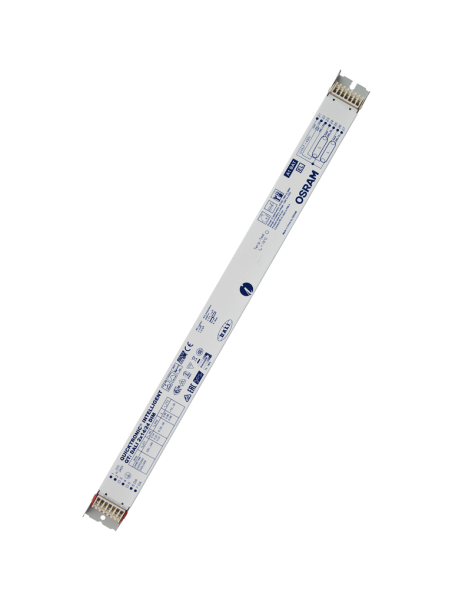

Dimmable Dali electronic ballast for 2 tubes T5 14w 24w Osram
QUICKTRONIC QT-I DALI 2X14/24/220-240 DIM Osram
A030200870861
€53.05
Tax included
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69Product advantages
System+ Guarantee available
Easy integration in luminaire thanks to same dimensions like DALI GI ECG
TouchDIM function for easy and inexpensive dimming of several ECGs
Same luminous flux with direct and alternating current
Dimming of amalgam lamps without flickering or reduced lifespan
Automatic restart after lamp replacement
DALI product features
Control via the DALI interface
Compliance with the DALI Version-1 and IEC 60929
Control input protected against overvoltage and polarity reversal (OSRAM ECG)
Touch DIM and Touch DIM Sensor function
Manual dimming without controller and with standard switches
Including memory function (double click) and soft start
Product features
Corridor function for direct connection of ECG to common motion sensor
Corridor function with pre-programmed light program
Touch DIM function for free parameterization of light value and turn on time
Fit for SMART GRID for feedback of consumed mains power and lamp operating hours
Fit for emergency function for automatic detection of emergency lighting by ECG
Very low standby power consumption: < 0.5 W
Lifetime: > 100,000 h (for T = 65 °C at Tc)
Very high number of switching cycles: up to 300,000
Dimming range: 1…100 % (3…100 % with compact fluorescent lamp)
POWER2LAMP function for optimal matching of ECG power to lamp during lamp lifetime
Line frequency: 0 Hz, 50…60 Hz, rectified AC
Application areas
Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
Industry
Open-plan offices, corridors and storage rooms
public buildings
Sports halls and factories
strip lighting
shop lighting
Suitable for luminaires of protection class I
A030200870861
4050300870861
Data sheet
- FAMILY
- Accessoires
- USAGE ACC
- Alimentation
- Technology
- Fluorescence
- Equipment
- Ballast électronique
- Power supply
- French sector
- Ballast
info Vous indique pour quel type de lampe ce ballast convient:
ex: G13-T8/1x18w vous indique
- - le culot: G13
- - le type: T8
- - le nombre de lampe qu'il peut alimenter: 1
- - la puissance de la lampe : 18w
- G5-T5/2x14w
G5-T5/2x24w - Electrical protection class
- I
- Average nominal lifespan
- 100000 H
- Manufacturer
- OSRAM
- Frequency
- 50/60
- Dimmable
- Oui
- Height
- 21 mm
- IP classification
- 20
- Width
- 30 mm
- Overall lenght
- 423 mm
- Operating range
- +10 +50 °C
- Protocol
- DALI
- Input voltage
- 220-240 v
- Input voltage type
- AC/DC
- Type de Gradation
- Touch Dim
Touch Dim Sensor - Weight
- 0.37 Kgs
- Plage de gradation
- 1-100
- Eprel
- 1064601
New product
20
7.64 Kgs
- Length : 45.5 cm
- width : 16.3 cm
- height : 9.8 cm
