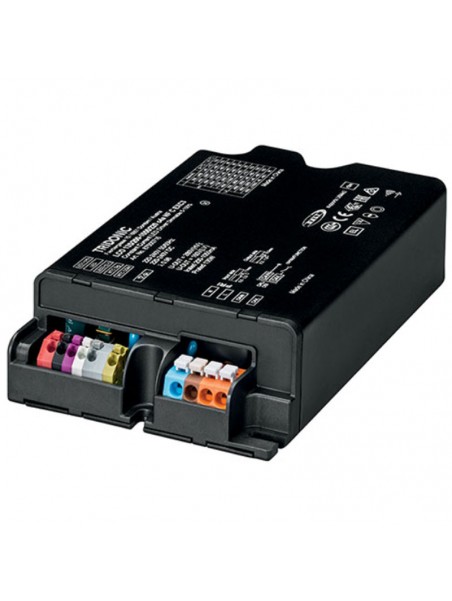

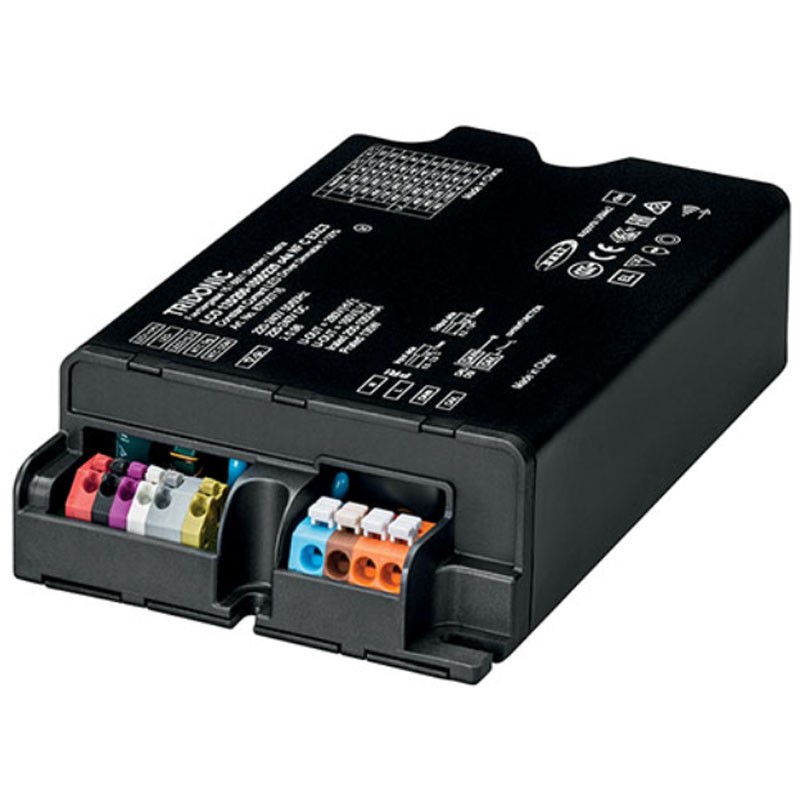

LEDDriver LCO 135/200-1050/220 o4a NF C EXC3 Tridonic
LCO 135/200-1050/220 o4a NF C EXC3The French flag indicates the current stock in our warehouse in France, therefore immediately available. If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
Product Description
Constant current dimmable LED driver for recessed lighting
Dimming range 5 – 100% (min. 10 mA)
For luminaires of protection class I and II
Thermal protection according to EN 61347-2-13 C5e
Output current adjustable between 200 – 1,050 mA via NFC, DALI or ready2mains programmer
Max output power 135W
Up to 93% efficiency
Smallest power consumption in standby mode < 0.16 W
Rated life of up to 100,000 hrs and 8 year warranty
interfaces
Near Field Communication (NFC)
one4all (DALI DT 6, DSI, switchDIM, corridorFUNCTION)
ready2mains (configuration via mains)
U6Me2 (chronoSTEP 2 configuration via network)
Terminals: 45° / 0° plug-in terminals
Functions
Output current adjustable in 1 mA steps (NFC, DALI, ready2mains)
programmable chronoSTEP: times and levels (NFC, DALI, U6Me2, ready2mains)
Dimming via mains voltage (inputDIM)
Extended Constant Light Output (eCLO) function
Protection functions (protection against: overheating, short circuit, overload, open-circuit voltage; input voltage range, reduced amplification of inrush current)
Configurable external thermal management (ETM)
Intelligent Thermal Management (ITG)
Intelligent Voltage Guard Plus (IVG+)
Suitable for emergency lighting installations according to EN 50172
Advantages
Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 Programmer
Application-oriented operating window for maximum compatibility
Significant energy savings thanks to low standby losses and high efficiency
Possibility of programming in the field after installation with the NFC interface and ready2mains
High overvoltage protection: asymmetrical up to 10 kV (protection class I and II)
Typical Application
Street and industry
Data sheet
- FAMILY
- Accessoires
- Emplacement
- Intégration
- Technology
- LED
- Equipment
- LED Driver
- Power supply
- French sector
- Average nominal lifespan
- 100000 H
- Manufacturer
- TRIDONIC
- Frequency
- 50/60
- Product line
- Courant Constant (milli-Ampères)
- Dimmable
- Oui
- Height
- 37.5 mm
- IP classification
- 20
- Width
- 90 mm
- Overall lenght
- 150 mm
- Certifications
- CE
ENEC
Rohs - Operating range
- -25 +60 °C
- Protocol
- DALI
- Power
- 135 w
- Input voltage
- 220-240 v
- Type de Gradation
- Ready2main (Tridonic)
- Plage d'intensite de sortie
- 200-1050
- Weight
- 0.22 Kgs
- Plage de gradation
- 5 -100
- Length : 22.7 cm
- width : 17.7 cm
- height : 16 cm
