all light at your fingertips

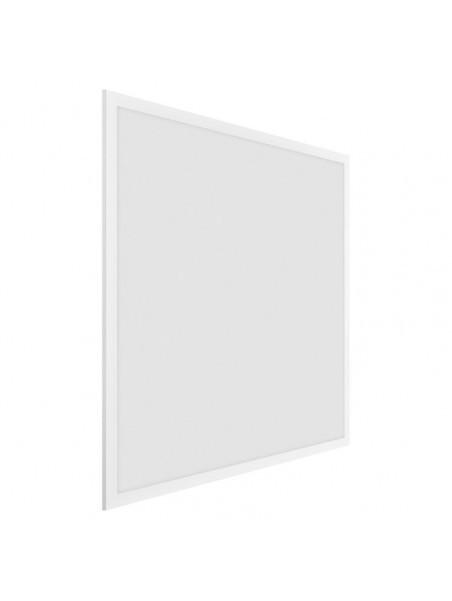

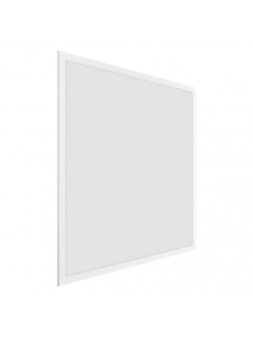

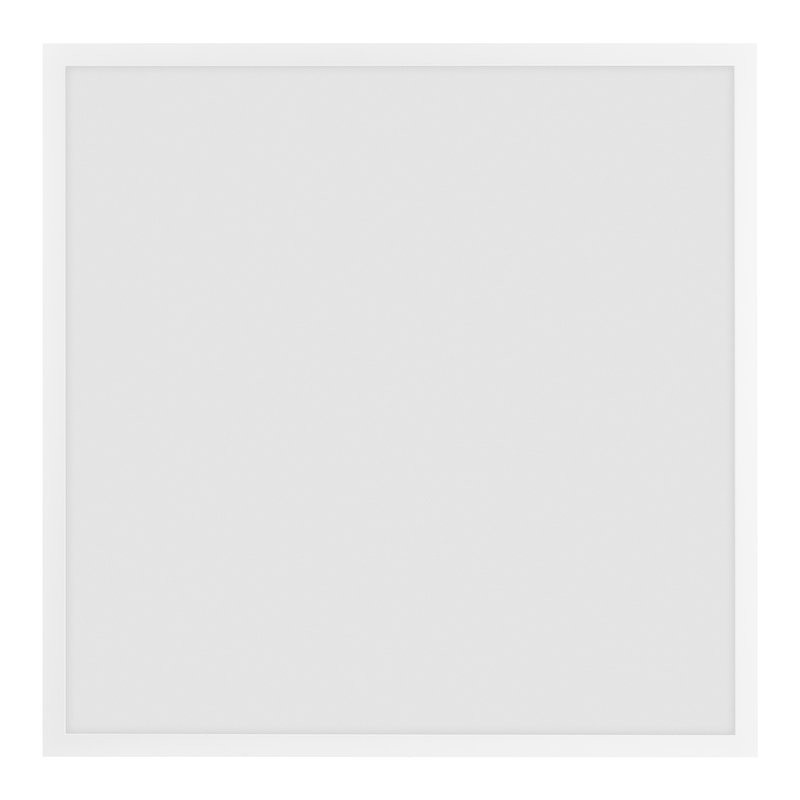

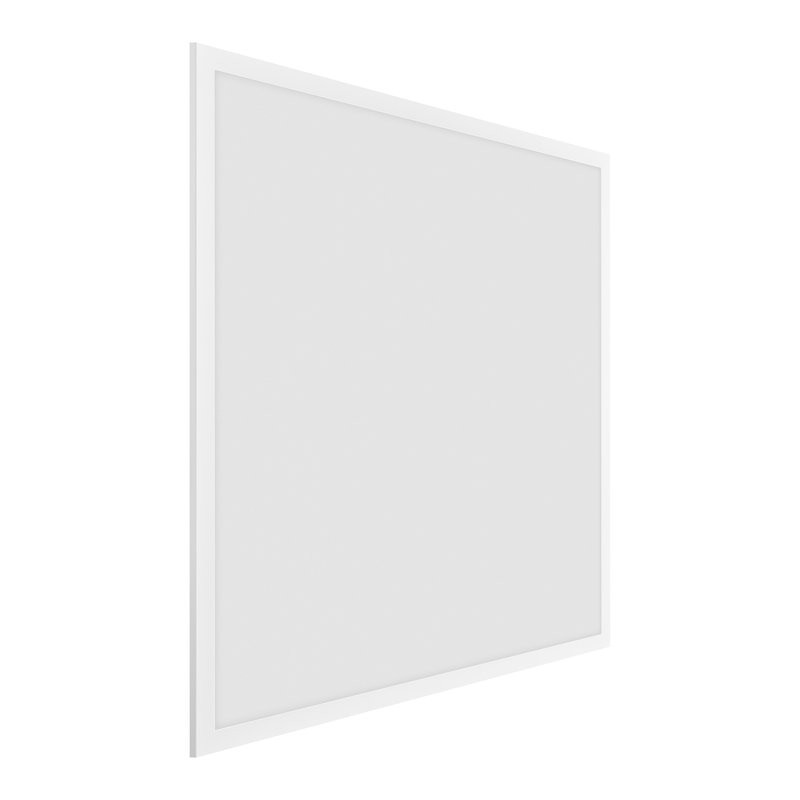

PANEL ZB VIVARES PFM 600 ZBVR 36W 4000K 4320lm UGR19 IP40 LEDVANCE
LDV PL PFM 600 ZBVR 36W/4000K 4320lm UGR19 IP40 PANEL ZB VIVARES LEDVANCE
P050200522862
Consult us
Tax included
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69Square recessed panels, tool-free installation, for 600 x 600 mm ceiling systems, with Zigbee 3.0 technology.
Product Features:
IoT-ready luminaire with Zigbee 3.0 technology. Extruded aluminum frame. Polystyrene diffuser. 3-wire terminal block, cable section up to 3 x 2.5 mm² (25 W and 30 W versions). 5-pole terminal block, cable section up to 5 x 2.5 mm² (36 W versions and DALI types).
Product advantages:
Luminaire suitable for VIVARES and other Zigbee 3.0 management systems. Tool-free electrical connection thanks to the push-button connector. Through-wiring possible with the connection box included. Energy savings thanks to high system efficiency: up to 120 lm/W. Comfortable light and great color uniformity. External converter for more flexibility and easier installation. Low flicker thanks to special electronic ballast. Emergency lighting possible with the LEDVANCE emergency conversion box. 5 year warranty.
Application areas:

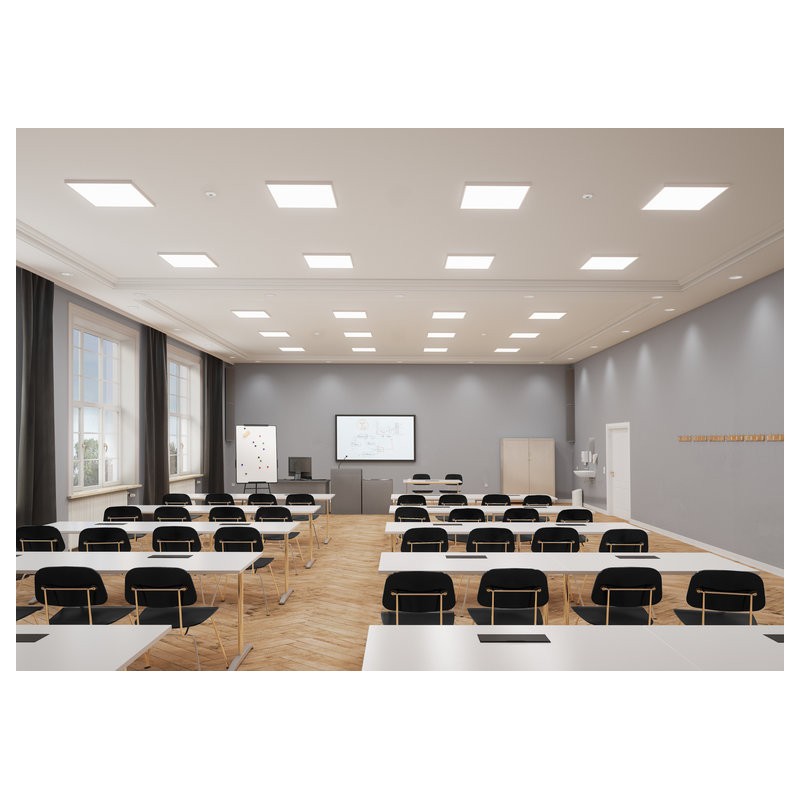

Direct replacement for luminaires with fluorescent lamps. Offices, conference rooms. Reception areas, corridors, elevators. Suitable for concealed systems with a grid of dimensions 600 x 600 mm.
Technique / Accessories:
Accessories for multiple mounting options available. Connection box with 3-wire or 5-wire terminal block included. Safety cable for luminaire supplied. Safety hooks included. External ballast included.
P050200522862
4058075522862
Data sheet
- FAMILY
- Luminaires
- Implantation
- Plafond
- Emplacement
- Encastré
- Technology
- LED
- Power supply
- French sector
- Electrical protection class
- II
- Illumination color
- Blanc
- Average nominal lifespan
- 100000 H
- Lamp efficacy
- 120 Lm/W
- Manufacturer
- LEDVANCE
- Power factor
- 0.95
- Finition
- Blanc
- Luminous flux
- 4320 Lm
- Form
- Carré
- Frequency
- 50/60
- Manufacturer warranty (year)
- 5
- Dimmable
- Non
- Height
- 80 mm
- Implantation
- Plafond
- IP classification
- 40
- IK classification
- IK02 Résistance à un impact de 0.2 joules
- Color rendering indice (CRI)
- 80
- Current
- 0.16 A
- Width
- 595 mm
- Overall lenght
- 595 mm
- MAtter
- Alliage Aluminium
- Certifications
- CE
ENEC
RG 0 Photobio 62471 - Operating range
- -10 +50 °C
- Protocol
- ZigBee
- Power
- 36 w
- Power source
- Included
- Light source
- Integrated
- Glass shade
- Opale
- Temperature at the thread
- 650
- Color temperature
- 4000 K
- Input voltage
- 220-240 v
- Input voltage type
- AC
- Angle
- 120 °
- Weight
- 1.9 Kgs
- Eprel
- 628600
4
10.835 Kgs
- Length : 64 cm
- width : 22 cm
- height : 71 cm
