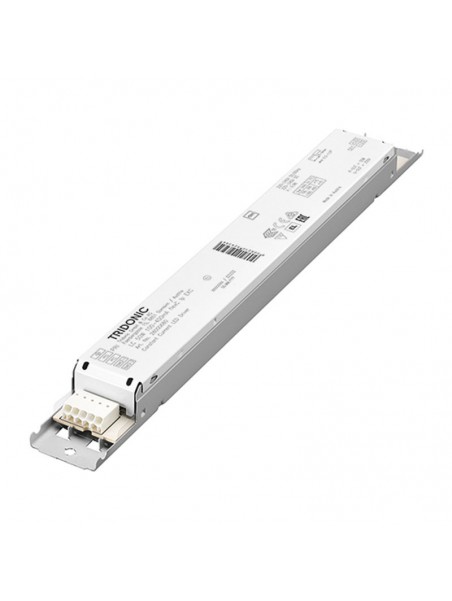

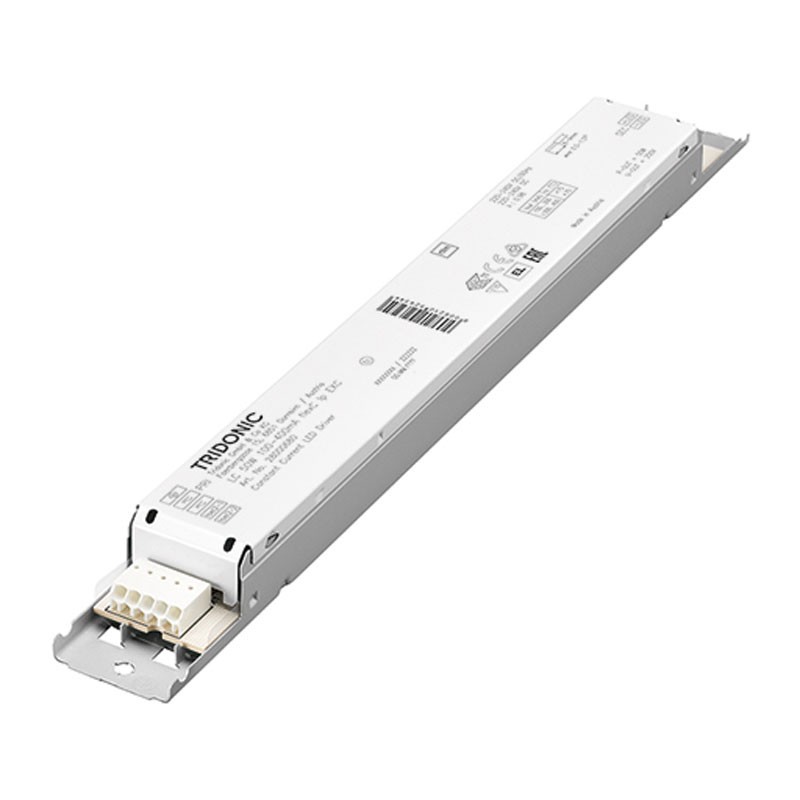

LEDDriver LC 25W 100-500mA flexC lp EXC Tridonic
LC 25W 100-500mA flexC lp EXC
A146028000679
Consult us
Tax included
Not returned or exchanged item
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69Product Description
Constant current LED driver for recessed luminaires
For luminaires of protection class I and II
Output current adjustable between 100 and 500 mA with ready2mains interface or I-SELECT connectors (generation 2)
Max output power 25 W
Up to 87% efficiency
Nominal service life up to 100,000 h
5 year warranty
Housing features
Low section Metal case with white upper part
Protection class IP20
Interfaces
ready2mains (configuration via mains)
Terminal blocks: 0 ° plug-in terminals
Functions
Output current adjustable in steps of 1 mA (ready2mains, I-SELECT 2)
Protection functions (protection against: overheating, short circuit, overload, open circuit voltage; input voltage range)
Suitable for emergency lighting installations conforming to EN 50172
Advantages
Application-oriented operating window for maximum compatibility
High energy savings thanks to high efficiency
Flexible configuration via ready2mains and I-SELECT 2
Service life of max. 100,000 hrs and 5 years warranty
Typical application
For linear and large illuminating area lighting in office applications
A146028000679
9006210524276
Data sheet
- FAMILY
- Accessoires
- Emplacement
- Intégration
- Technology
- LED
- Equipment
- LED Driver
- Power supply
- French sector
- Manufacturer
- TRIDONIC
- Frequency
- 50/60
- Product line
- Courant Constant (milli-Ampères)
- Dimmable
- Oui
- Height
- 21 mm
- IP classification
- 20
- Width
- 30 mm
- Overall lenght
- 280 mm
- Certifications
- CE
ENEC
Rohs - Operating range
- -25 +50 °C
- Power
- 25 w
- Input voltage
- 220-240 v
- Type de Gradation
- Ready2main (Tridonic)
- Plage d'intensite de sortie
- 100-500
- Weight
- 0.145 Kgs
- Série
- Tridonic Excite
1
0.15 Kgs
- Length : 28 cm
- width : 3 cm
- height : 2.1 cm
