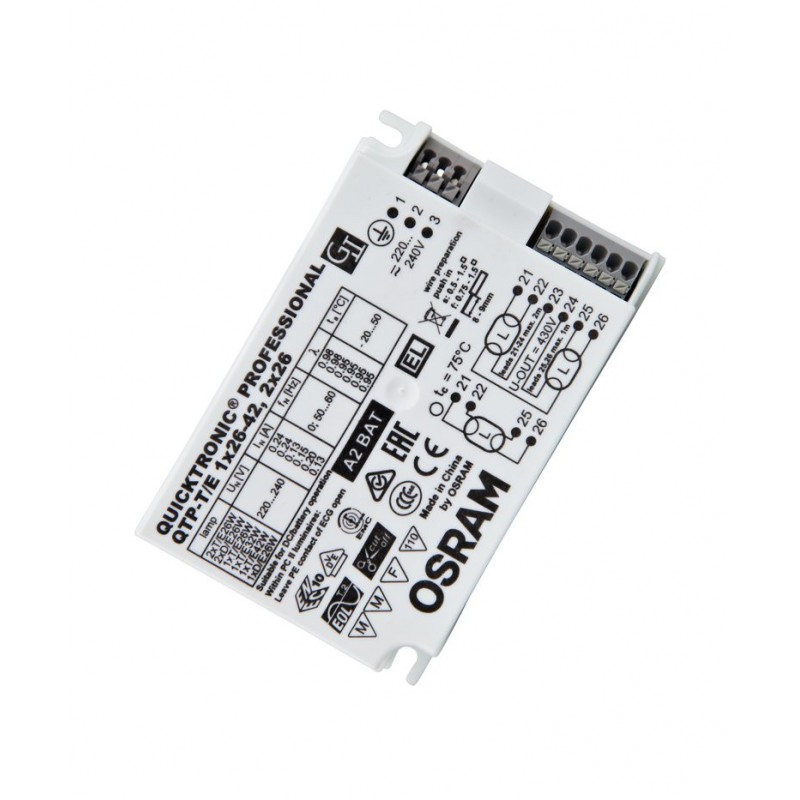

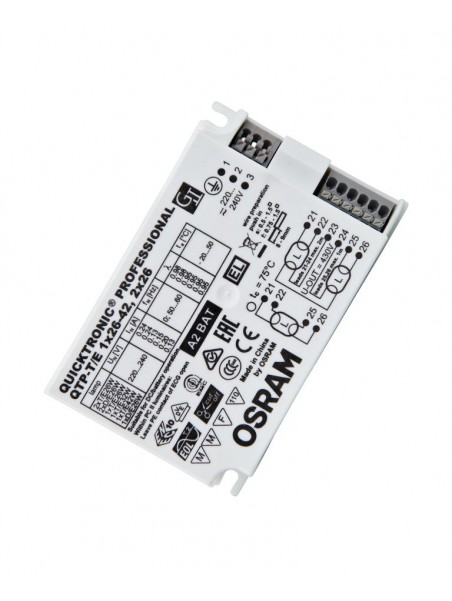

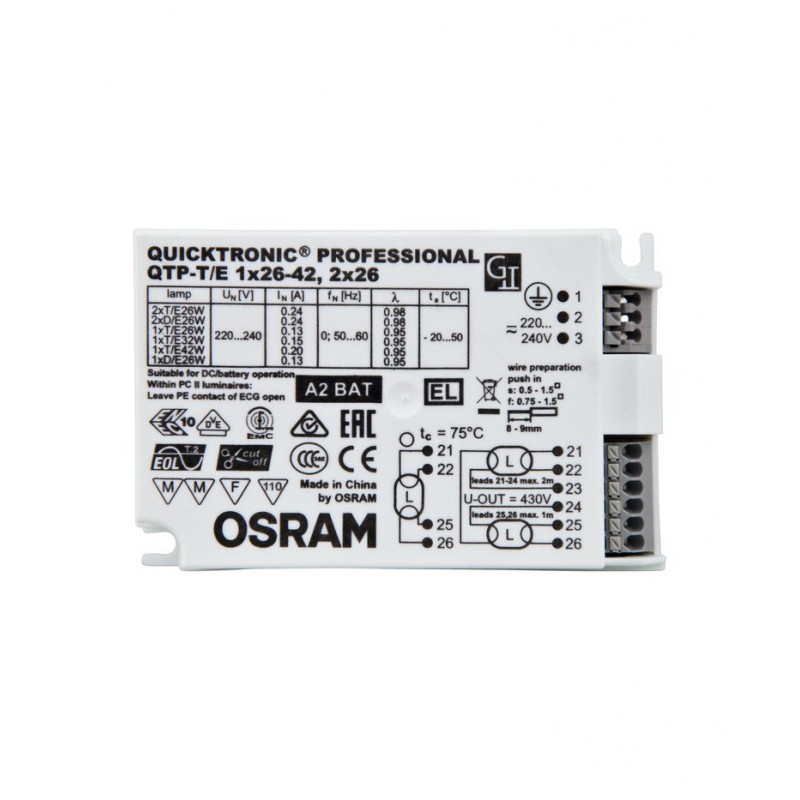

Electronic ballast for 1 or 2 T/E 26w lamps or 1 T/E 32w 42w Osram lamp

QUICKTRONIC QTP-T/E 1X26-42,2x26/220-240 Osram
A030200537089
€50.65
Tax included
 Sorry, no items left. You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.

The French flag indicates the current stock in our warehouse in France, therefore immediately available. If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".

Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.

Stock available immediately: 0
European stock available quickly: 200
QUANTITY 1 and +
UNIT PRICE (excVAT) €42.21
UNIT PRICE (incVAT) €50.65
Estimated shipping Day: 8 to 10 days
Quantity

0
At your service
QUANTITY DISCOUNT
FREE SHIPPING
SECURE PAYMENT
05 63 63 94 69

Product features

Supply voltage: 220 to 240 V,
Line voltage: 198 to 264 V,
Line frequency: 0 Hz | 50 Hz | 60 Hz
Lamp start-up with filament preheating
Energy efficiency index EEI: A2
Automatic shutdown of defective and end-of-life lamps (EoL T.2)
Lamp operation: according to EN 60929
Safety: according to EN 61347-2-3


Product advantages

Long lamp life
No negative effects from frequent on / off switching
Auto restart after lamp replacement
Perfect lighting of the lamp for applications with motion cells
Separate installations with optional cable clamp for K2 and K3 boxes
VDE / VDE EMC certified system


Application areas

Emergency lighting system according to EN 50172 / DIN VDE 0108-100
Public buildings
Sports halls and factories
Suitable for luminaires of protection class I

A030200537089
4008321537089

Data sheet

FAMILY
Accessoires
USAGE ACC
Alimentation
Technology
Fluocompacte
Equipment
Ballast électronique
Power supply
French sector
Ballast
info Vous indique pour quel type de lampe ce ballast convient:
ex: G13-T8/1x18w vous indique
  • - le culot: G13
  • - le type: T8
  • - le nombre de lampe qu'il peut alimenter: 1
  • - la puissance de la lampe : 18w
Dans cet exemple, le ballast peut donc alimenter un seul tube G13 de 18w
G24Q-DE/1x26w
G24Q-DE/2x26w
GX24Q-TE/1x26w
GX24Q-TE/1x32w
GX24Q-TE/1x42w
GX24Q-TE/2x26w
Electrical protection class
I
Manufacturer
OSRAM
Frequency
50/60
Dimmable
Non
Height
31 mm
IP classification
20
Width
67 mm
Overall lenght
103 mm
Input voltage
220-240 v
Weight
0.149 Kgs
20
3.192 Kgs
  • Length : 35.7 cm
  • width : 22.2 cm
  • height : 9.6 cm
