all light at your fingertips

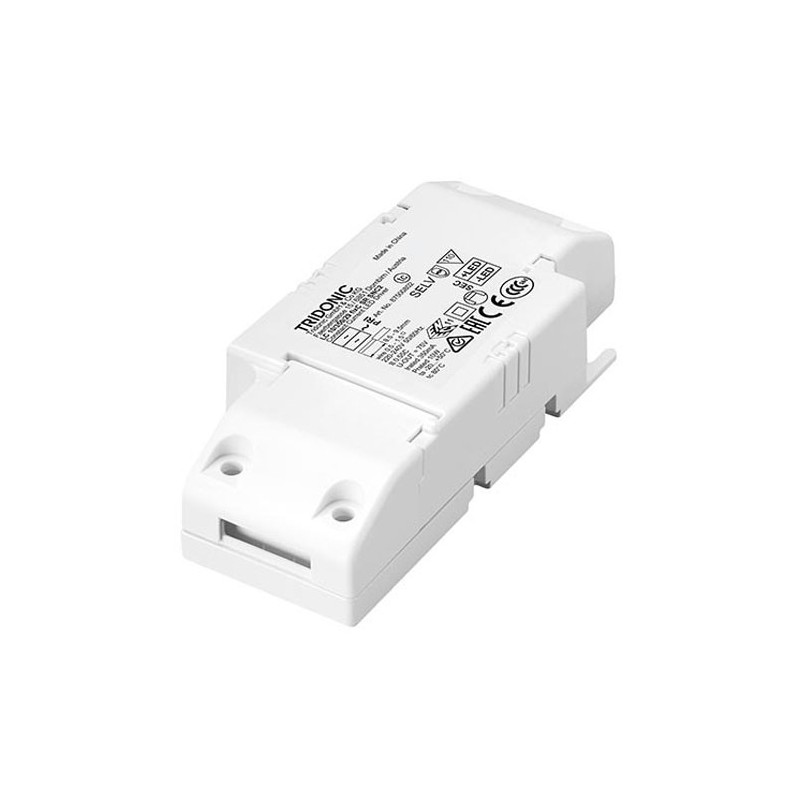

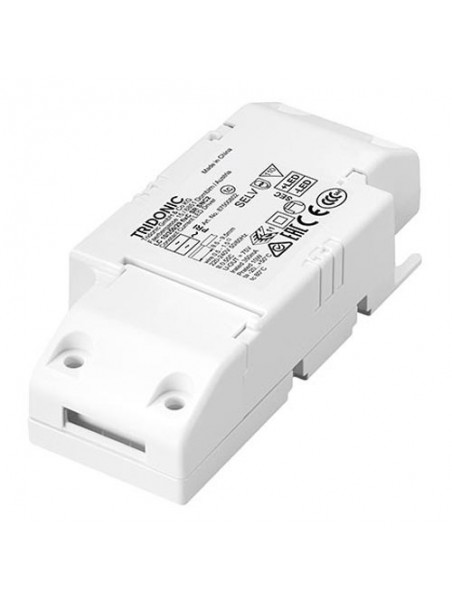

LEDDriver Driver LC 10W 700mA ixC SR SNC2 tridonic
Driver LC 10W 700mA fixC SR SNC2 ESSENCE
A146087500804
Consult us
Tax included
Not returned or exchanged item
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69Product Description
Independent LED driver with wire clamp box
Extra flat version for reduced installation conditions (small cutouts in the ceiling and reduced recesses in the ceilings)
Thermal protection according to EN 61347-2-13 C5e
700 mA output current
Max output power 10 W
Nominal service life up to 50,000 h
5 year warranty
Housing features
Housing: polycarbonate, white
Protection class IP20
Plug-in terminals
2 separate cable ties for input and output cables with very sturdy terminal blocks.
Functions
Overload protection
Short circuit protection
Open circuit voltage protection
No overshoot of the output current with the mains connected or not connected
1 kV overload voltage protection
Protection against overload voltages 0.5 kV (between L and N)
Protection against overload voltages 1 kV (between L / N and earth)
Typical application
For spotlights and downlights in commercial and catering applications
For illumination of signs and surfaces in office and education applications
A146087500804
9006210678825
Data sheet
- FAMILY
- Accessoires
- Emplacement
- Capoté
- Technology
- LED
- Equipment
- LED Driver
- Power supply
- French sector
- Manufacturer
- TRIDONIC
- Frequency
- 50/60
- Product line
- Courant Constant (milli-Ampères)
- Dimmable
- Non
- Height
- 22.5 mm
- IP classification
- 20
- Width
- 45 mm
- Overall lenght
- 100 mm
- Certifications
- CE
ENEC
Rohs - Operating range
- -25 +50 °C
- Power
- 10 w
- Input voltage
- 220-240 v
- Plage d'intensite de sortie
- 700
- Weight
- 0.056 Kgs
- Série
- Tridonic Essence
1
Kgs
- Length : 10 cm
- width : 4.5 cm
- height : 2.25 cm
