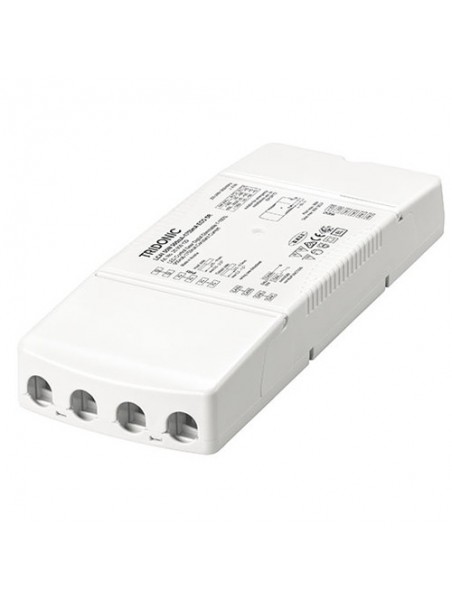

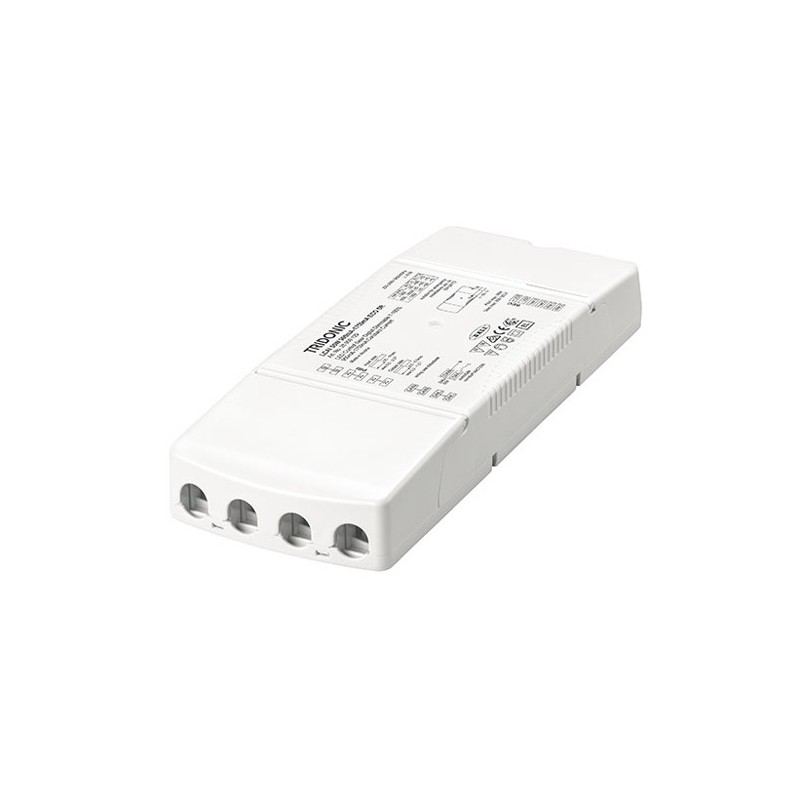

LEDDriver LC 17w 240V 250-700mA IP20 Tridonic
Driver LC 17 W 250-700 mA flexC SR EXC
A146028000699
Consult us
Tax included
Not returned or exchanged item
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69Product Description
Independent constant current LED converter
Output current adjustable between 250 and 700 mA with ready2mains interface or I-SELECT connectors (generation 2)
Max output power 17 W
Up to 84% efficiency
Nominal service life up to 100,000 h
5 year warranty
Housing features
Housing: polycarbonate, white
Protection class IP20
Cable ties with possibility of branch connection
Interfaces
ready2mains (configuration via mains)
Terminal blocks: 0 ° / 45 ° plug-in terminal blocks (input / output)
Functions
Output current adjustable in steps of 1 mA (ready2mains, I-SELECT 2)
Protection functions (protection against: overheating, short circuit, overload, open circuit voltage; input voltage range)
Intelligent Voltage Guard
Suitable for emergency lighting installations conforming to EN 50172
For cable diameters up to 2.5 mm²
Benefits
Application-oriented operating window for maximum compatibility
High energy savings thanks to high efficiency
Flexible configuration via ready2mains and I-SELECT 2
Tool-free assembly
Typical application
For downlight, spotlight and decoration applications
A146028000699
9006210525679
Data sheet
- FAMILY
- Accessoires
- Emplacement
- Capoté
- Technology
- LED
- Equipment
- LED Driver
- Power supply
- French sector
- Average nominal lifespan
- 100000 H
- Manufacturer
- TRIDONIC
- Frequency
- 50/60
- Product line
- Courant Constant (milli-Ampères)
- Dimmable
- Oui
- Height
- 31 mm
- IP classification
- 20
- Width
- 70 mm
- Overall lenght
- 200 mm
- Certifications
- CE
ENEC
Rohs - Operating range
- -25 +60 °C
- Power
- 17 w
- Input voltage
- 220-240 v
- Type de Gradation
- Ready2main (Tridonic)
- Plage d'intensite de sortie
- 250-700
- Weight
- 0.185 Kgs
- Série
- Tridonic Excite
1
Kgs
- Length : 20 cm
- width : 7 cm
- height : 3.1 cm
