Non contractual photo
all light at your fingertips

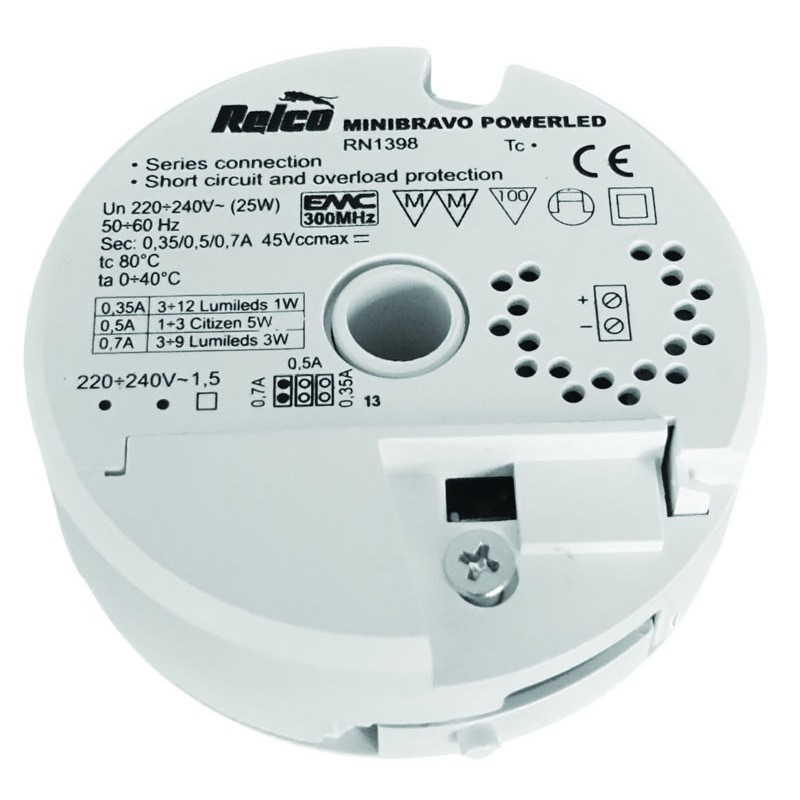

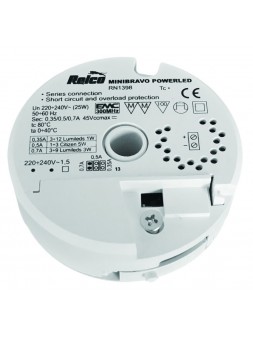

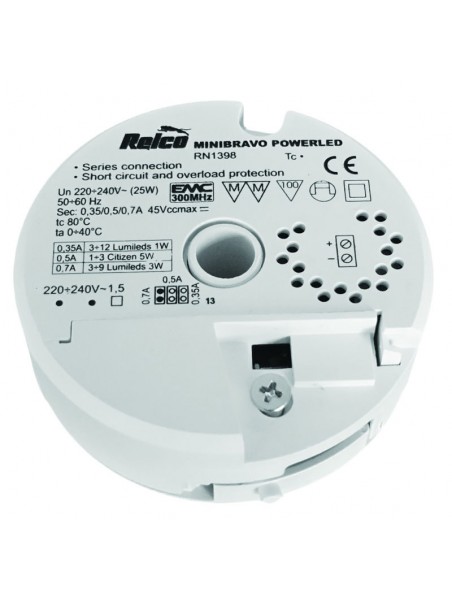

Led driver Minibravo RN1398 350-500-700mA 14-20-22W RELCO
A141000413980
€44.28
Tax included
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69MULTI POWERLED - CDT - power supply
- Constant current output
- Class II protection against electric shock following direct or indirect
contact
- Provided JUMPER to select the output voltage
- Protection degree IP20
- Independent driver
- Input and output terminal blocks on the same side
- Driver can be secured with slot for screws; central hole diameter
10mm
- Protection: thermal, overload, overvoltage and short circuit
- Cannot be switched on and off on secondary circuit
- Connection modules SERIES
Standard reference:
Safety: EN 61347-1; EN 61347-2-13
Radio interferences: EN 55015; EN 55015-A1; EN 55015-A2
Harmonics: EN 61000-3-2
Immunity: EN 61547
Performance: EN62384
A141000413980
8435100510807
Data sheet
- FAMILY
- Accessoires
- Emplacement
- Intégration
- Technology
- LED
- Equipment
- LED Driver
- Power supply
- French sector
- Electrical protection class
- II
- Diameter
- 72 mm
- Manufacturer
- RELCO
- Product line
- Courant Constant (milli-Ampères)
- Dimmable
- Non
- Height
- 24 mm
- Certifications
- CE
EMC
Rohs - Operating range
- -20 +40 °C
- Power
- 14-22 w
- Input voltage
- 220-240 v
- Input voltage type
- AC
- Plage d'intensite de sortie
- 350-700
- Weight
- 0.07 Kgs
1
0.07 Kgs
- Length : cm
- width : 7.2 cm
- height : 7.2 cm
