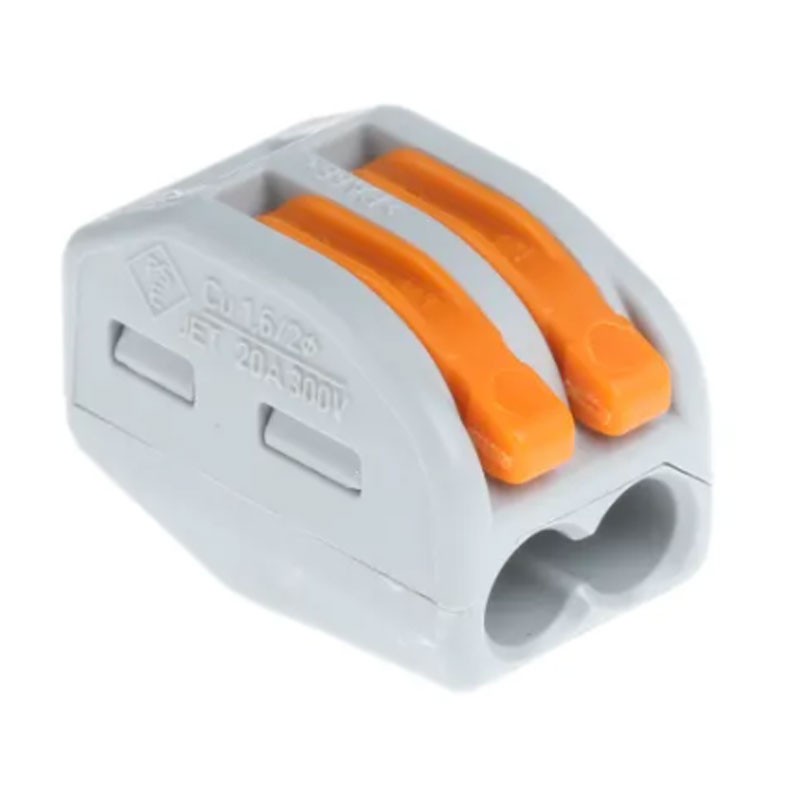

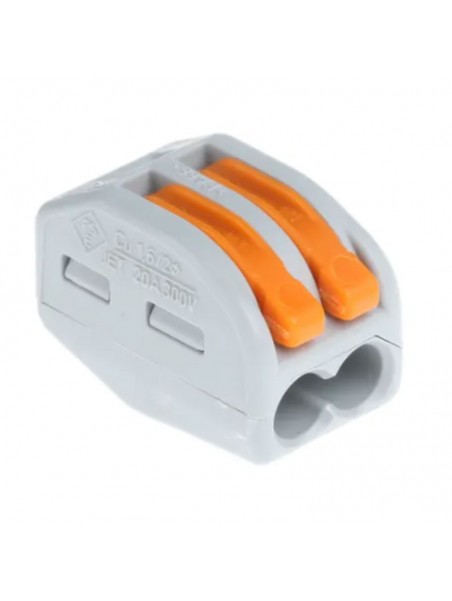

Wago 222-412 Series terminal block, 2-pole, 22A




















          WAGO093434152

















           	          €8.52


















              Tax included















          	Not returned or exchanged item









                             Sorry, no items left.


            You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.




           	The French flag indicates the current stock in our warehouse in France, therefore immediately available.
            If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".



            Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.

Some suppliers do not wish to communicate their stocks beyond 200 pcs.

Some suppliers do not communicate their stocks.














































 Stock available immediately: 0


 European stock available quickly: 111









                            QUANTITY

                                                                                    1 to 49

                                                                                                   50 and +






                            UNIT PRICE (excVAT)
                                                        	                                	€0.71
                                                                                                    €0.67






                                UNIT PRICE (incVAT)
                                                                	                                    	€0.85
                                                                                                                €0.80



















Estimated shipping Day: 8 to 10 days





        Quantity











                  Product to be ordered in multiples of 10.




















1




























































At your service










 QUANTITY DISCOUNT











 FREE SHIPPING















 SECURE PAYMENT

















 05 63 63 94 69
































With the classic WAGO 222 connection terminal, up to two different conductor types can be easily and securely connected. Thanks to the practical lever function, no additional tools are required for installation. It is 12.4mm wide, 20.5mm long and 14.5mm high. The housing is gray plastic, with the levers in orange.



The diameter of the connection point can vary from 0.08mm² to a maximum of 4mm², which makes it easier to connect all copper conductors to one or more wires. No further pre-treatment of the cables is necessary.



EAN: 4050821346470



A 1 piece packaging unit is provided.



2-wire terminal, with control levers, max. Continuous use temperature 85 ° C



Other


Name Value Unit


Total number of terminal points 2


Total number of potentials 1


Grey color


Pollution degree (1) 2


Nominal voltage EN (1) [V] 400 V


Rated surge voltage (1) [kV]


Nominal current 4 kV (1) [A] 32 A


Connection technique 1 CAGE CLAMP® single-wire


, connectable 1 0.08 ... 2.5 mm² / 28 ... 12 AWG


stranded, connectable 1 0.08 ... 2.5 mm² / 28 ... 12 AWG


finely stranded, connectable 1 0.08 ... 4 mm² / 28 ... 12 AWG


stripping length 1 9… 10 mm / 0.35… 0.39 inch


Wiring type Side wiring


Fire load [MJ] 0.067 MJ


Weight [g] 3.053 g


Width 12.4 mm / 0.488 in


height 14.5 mm / 0.571 in


depth 20.5 mm / 0.807 in


safety instruction 1 in earthed networks












        WAGO093434152








             4050821346470






















Data sheet




FAMILY




Accessoires



Weight




0.005
									Kgs



























                     50




                     0.19 Kgs








  • Length : 11.2 cm
    •

  • width : 9 cm
    •

  • height : 6 cm
    •
