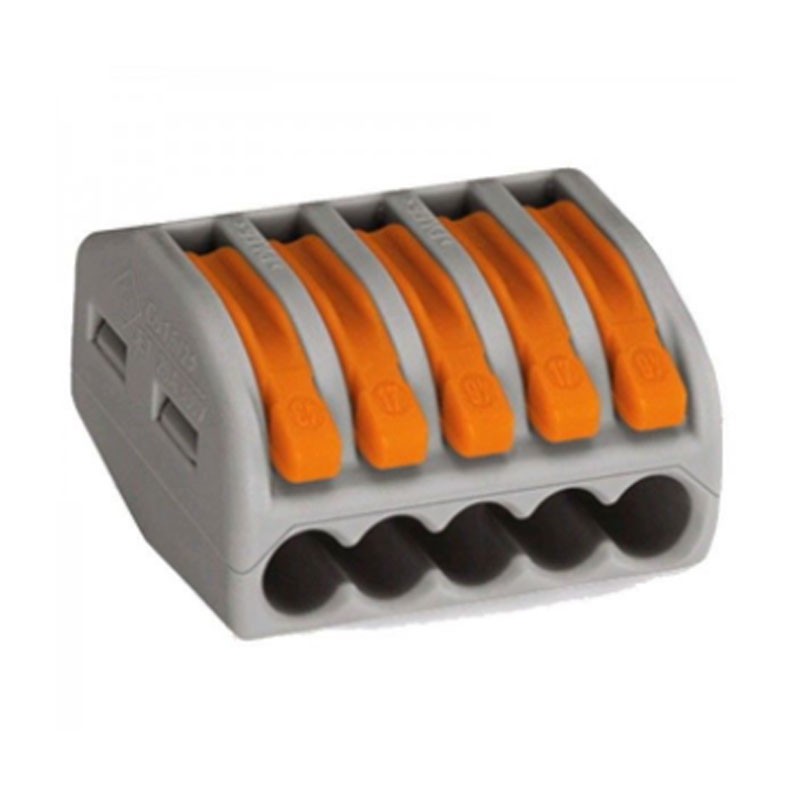

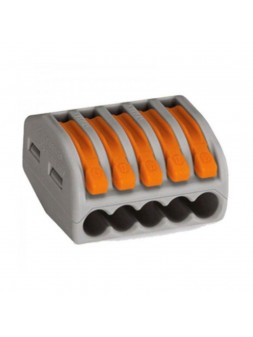

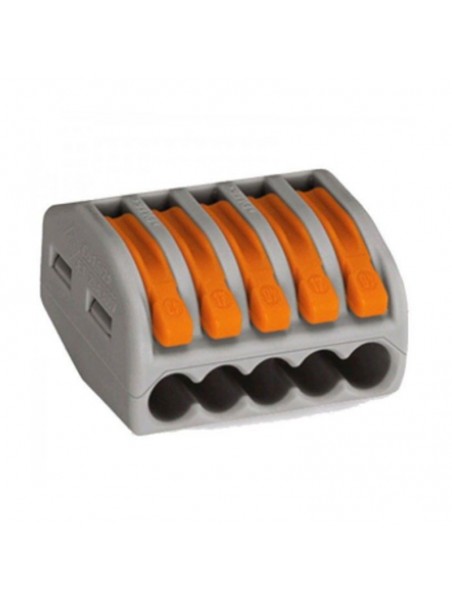

Wago 222-415 Series terminal block, 5-pole, 32A

The Wago 222 415 connection terminal is a 5-wire terminal which has a control lever. The product is delivered in a packaging unit with one piece each. The maximum temperature for long-term use is around 85 degrees. The connector color is gray. The weight of the clamp is 6.58 grams. It has a width of 26.6mm and a height of 14.5mm. The depth of the clamp is 20.5 mm.

The clamp is supplied with a CAGE clamp connection. This terminal block therefore allows the connection of solid wires. The terminals can also be used for stranded and fine stranded conductors without tools. They are also suitable for 28 AWG wire.

EAN: 4044918464956

A packaging unit of 1 is provided.

5-wire terminal, with control levers, max. Continuous use temperature 85°C

Other

Name Value Unit

Total number of endpoints 5

Total number of potentials 1

Grey color

Pollution degree (1) 2

Nominal voltage EN (1) [V] 400 V

Rated surge voltage (1) [kV]

Nominal current 4 kV (1) [A] 32 A

Connection technology 1 CAGE CLAMP®

solid, connectable 1 0.08… 2.5 mm² / 28… 12 AWG

stranded, connectable 1 0.08… 2.5 mm² / 28… 12 AWG

finely stranded, connectable 1 0.08… 4 mm² / 28… 12 AWG

stripping length 1 9… 10 mm / 0.35… 0.39 inch

Wiring type Side wiring Fire load [MJ] 0.13 MJ

Weight [g] 6.58 g

Width 26.6mm / 1.047in

height 14.5 mm / 0.571 in

depth 20.5 mm / 0.807 at set point

safety 1 in earthed networks
