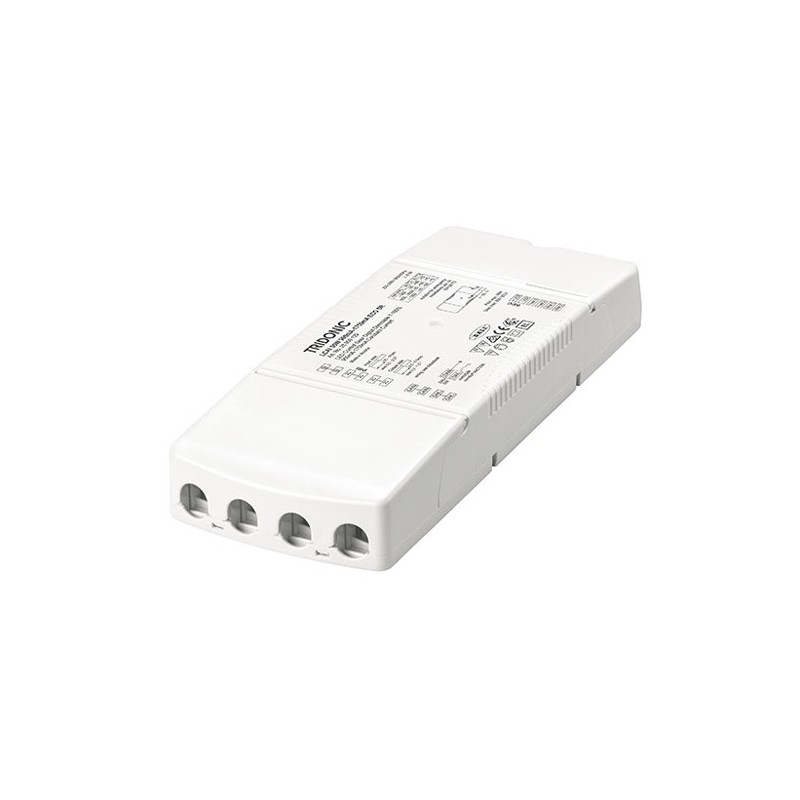

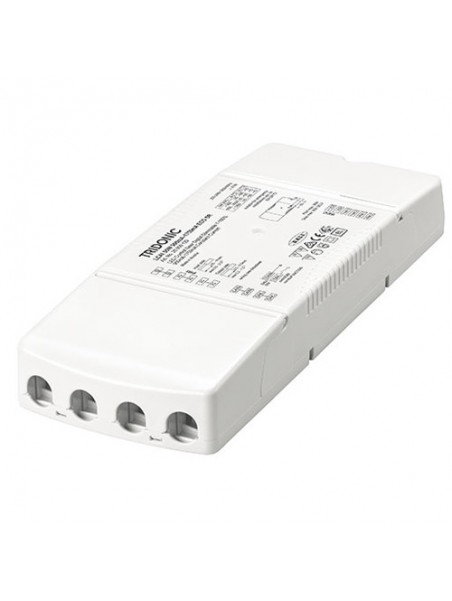

LEDDriver LC 45w 240V 500-1400mA IP20 Tridonic
Driver LC 45 W 500 at 1400 mA flexC SR EXC
A146028000701
Consult us
Tax included
Not returned or exchanged item
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69Product Description
Constant current LED driver
Dimmable with the ready2mains gateway
Dimming range from 15 to 100% (depending on the load. For details, see chapter 4.7 Dimming on the data sheet)
Output current adjustable between 500 and 1400 mA with ready2mains interface or I-select connectors (generation 2)
Max output power 45 W
Up to 88% efficiency
Nominal service life up to 100,000 h
5 year warranty
Housing features
Housing: polycarbonate, white
Protection class IP20
Cable ties with possibility of branch connection
Interfaces
ready2mains (configure and scale by sector)
Terminal blocks: 45 ° / 0 ° plug-in terminals
Functions
Output current adjustable in steps of 1 mA (ready2mains, I-select 2)
Dimmable via the ready2mains interface
Protection functions (protection against: overheating, short circuit, overload, open circuit voltage; input voltage range)
A146028000701
9006210525815
Data sheet
- FAMILY
- Accessoires
- Emplacement
- Capoté
- Technology
- LED
- Equipment
- LED Driver
- Power supply
- French sector
- Average nominal lifespan
- 100000 H
- Manufacturer
- TRIDONIC
- Frequency
- 50/60
- Product line
- Courant Constant (milli-Ampères)
- Dimmable
- Oui
- Height
- 31 mm
- IP classification
- 20
- Width
- 70 mm
- Overall lenght
- 215 mm
- Certifications
- CE
ENEC
Rohs - Operating range
- -25 +60 °C
- Power
- 45 w
- Input voltage
- 220-240 v
- Type de Gradation
- Ready2main (Tridonic)
- Plage d'intensite de sortie
- 500-1400
- Weight
- 0.22 Kgs
- Série
- Tridonic Excite
10
2.2 Kgs
- Length : 22.7 cm
- width : 17.7 cm
- height : 16 cm
