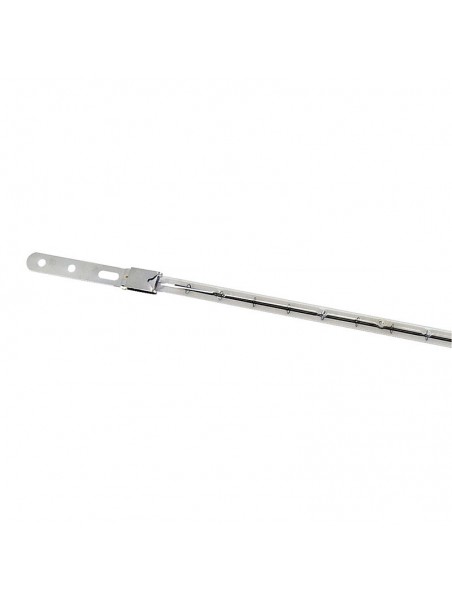

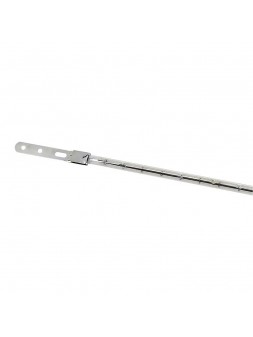

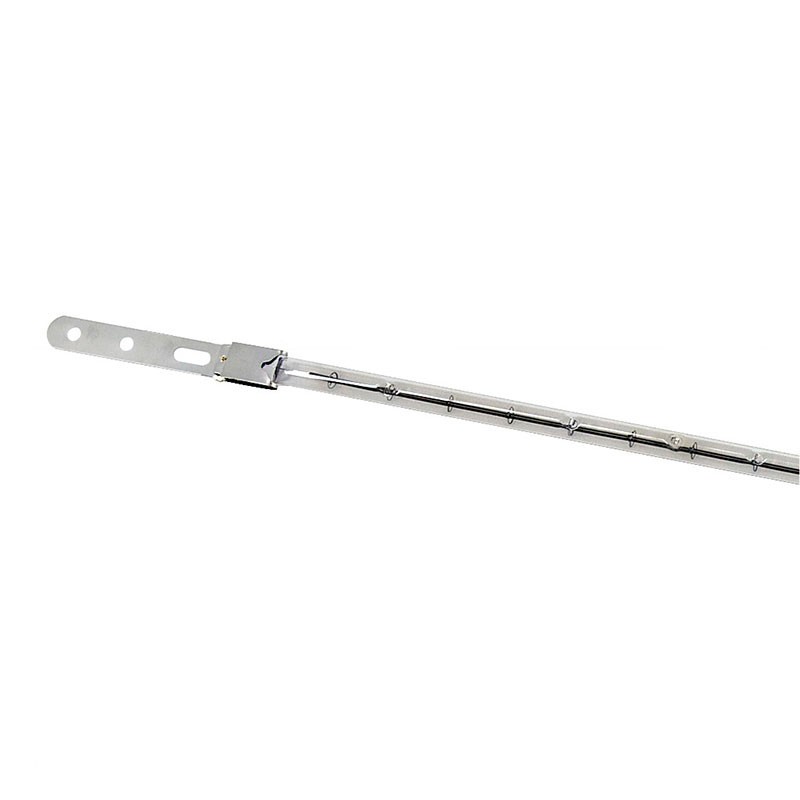

13245X Infrared quartz tube 2000w 400v 12x508mm DIRTECH
The French flag indicates the current stock in our warehouse in France, therefore immediately available. If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
Double ended tubular halogen lamp used as a very powerful and efficient heat source for various industrial applications
- Instant heating: maximum power 1 second after ignition
- Clean: no pollution generated by infrared lamps and by the product
- Safety: lamp resistant to thermal shocks thanks to the quartz casing
- Economical: more than 85% of the energy consumed is transformed into infrared heat
- Full attenuation possibility: infrared lamps can be controlled with precision (from 0% to 100%)
- Possibility to place a sensor: the on / off switches do not affect the lifespan of infrared lamps
- Low maintenance: long service life, about 5,000 hours
- Heat can be focused: infrared lamps have the same optical properties as lighting lamps, i.e. heat can be directed by reflectors
- Compact heat source: infrared lamps have a small diameter
Characteristics
- High efficiency
- Paint drying in tunnels and in body shops
- Blowing of PETP bottles
- Thermoforming of plastics
- Softening, fusion of plastics
- Epitaxy, chemical vapor deposition, RTP, oxidation process in the semiconductor industry
- Heating and maintaining food temperature
- Paper drying
- Drying of varnishes, printing inks
- Preheating of the wood before varnishing
- Thermal sterilization
The spectral emission of these lamps is between 700 and 1800nm.
Professional applications:
Plastics: bottle blowing, thermoforming, processing of plastics, welding, screen printing, elongation of plastics
Paper materials: drying, photocopying, offset press, inkjet, screen printing
Food: catering, food processing
Wood and Composites: drying, heat setting, powder coating
Footwear and textiles: drying, heat setting
Metal: elongation of metal materials, coil coating, powder-type coating
Painting: bodywork, powder coating
Animal care: animal husbandry, veterinary clinic, zoos, pet shops
Beauty salons, heat treatments, thermoforming of plastics, stationery, printing, etc.
X / 98 and Z / 98 with reflector
Z - With cables
X - Without cables
98 - With reflector
Data sheet
- FAMILY
- Lampes
- Technology
- Halogène
- Base
- X
- Diameter
- 12 mm
- Average nominal lifespan
- 5000 H
- Manufacturer
- DIRTECH
- Product line
- Infrarouge
- Dimmable
- Oui
- Width
- 12 mm
- Lenght
- 435 mm
- Length heating
- 416
- Overall lenght
- 508 mm
- Burning position
- P 15
- Power
- 2000 w
- Glass shade
- Claire
- Color temperature
- 2450 K
- Input voltage
- 400 v
- Weight
- 0.35 Kgs
- Length : 50.8 cm
- width : 1.2 cm
- height : cm
