  • AAG STUCCHI
    •










     Non contractual photo

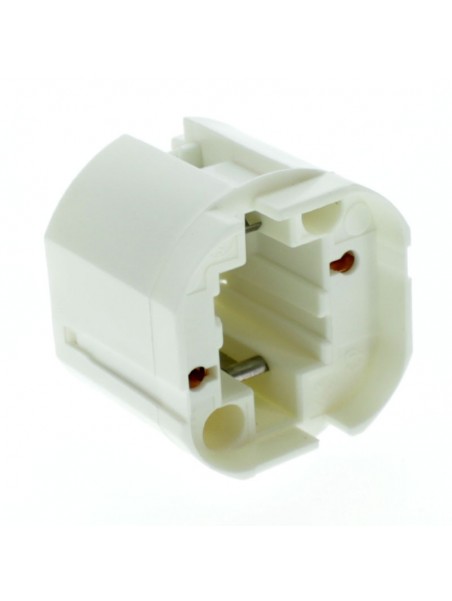

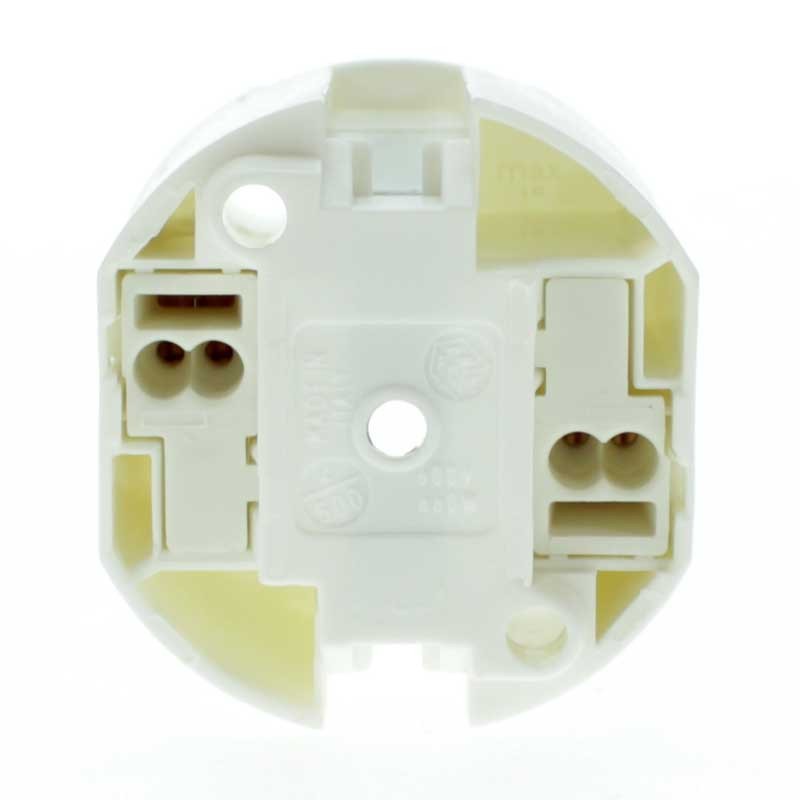

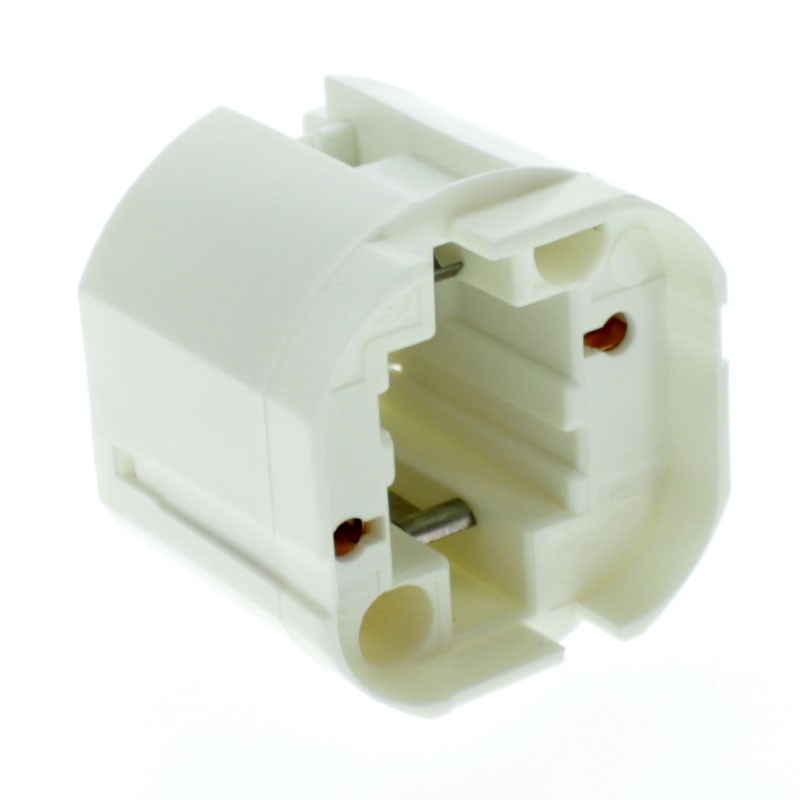

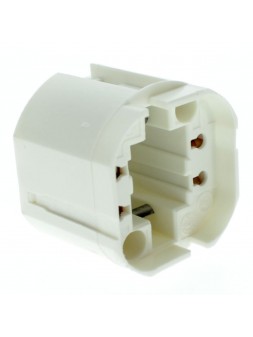

Lampholder G24D2-GX24D2 screw fixing in line - 140°C 1422/VVI-d2-T




















          A1056001422D2

















           	          €0.89


















              Tax included




















                             Hurry up! Only
                104
                 item(s) left in Stock!


            You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.




           	The French flag indicates the current stock in our warehouse in France, therefore immediately available.
            If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".



            Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.

Some suppliers do not wish to communicate their stocks beyond 200 pcs.

Some suppliers do not communicate their stocks.














































 Stock available immediately: 104









                            QUANTITY

                                                                                    1 to 9

                                                                                                   10 to 49
                                                                                                    50





                            UNIT PRICE (excVAT)
                                                        	                                	€0.74
                                                                                                    €0.70
                                                                                                    €0.67





                                UNIT PRICE (incVAT)
                                                                	                                    	€0.89
                                                                                                                €0.84
                                                                                                                €0.80


















Estimated shipping Day: 1 to 3 days





        Quantity































0




























































At your service










 QUANTITY DISCOUNT











 FREE SHIPPING















 SECURE PAYMENT

















 05 63 63 94 69






































Lamp d-2 (18 Watt)




Approval: additional cULus








For lamps TC-D, TC-T




Screw mount




Einclipsbefestigung









Rated current and voltage: 2A-250V
Maximum operating temperature (IEC): T140
Protection index: IP20
Impulse withstand category:  III

Characteristics
with retractable rear anti-rotation pins
— White polycarbonate body
— Copper alloy contacts



















        A1056001422D2

























Data sheet




FAMILY




Accessoires



Connectique




Douilles, Kits & Adaptateur



Base




G24d-2



Manufacturer




AAG STUCCHI



Dimmable




Non

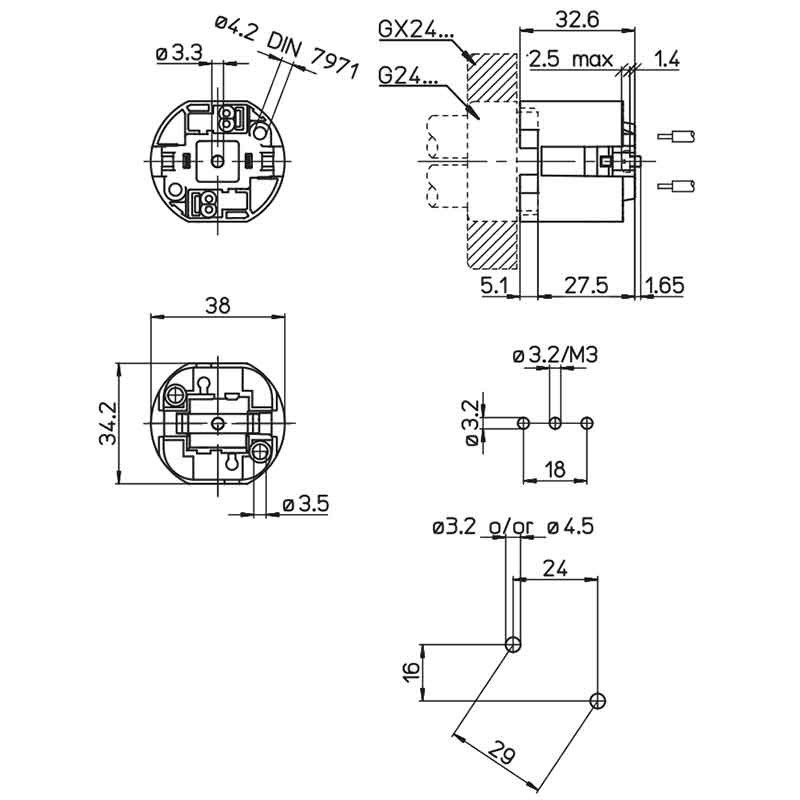

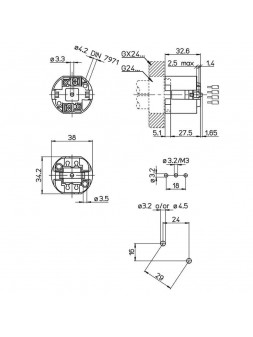

Height




32.6
									mm



Current




2
									A



Width




34.2
									mm



Overall lenght




38
									mm



Weight




0.014
									Kgs



























                     1




                     0.014 Kgs








  • Length : 3.8 cm
    •

  • width : 3.42 cm
    •

  • height : 3.26 cm
    •
