Non contractual photo
all light at your fingertips

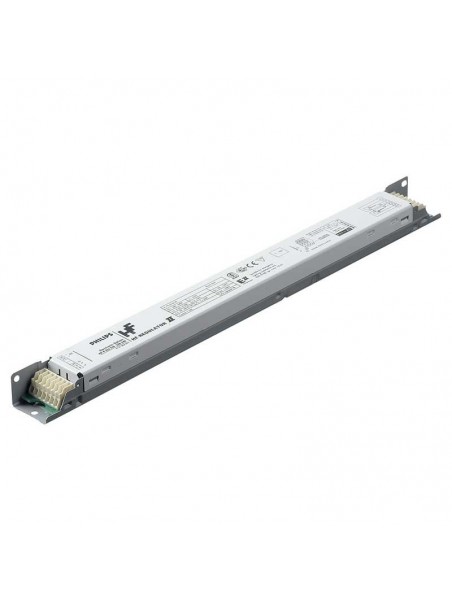

Dimmable electronic ballast for 2 tubes T8 18w 36w 1-10V Philips
HF-R 236 TL-D EII 220-240V 50/60Hz 1-10V Philips
BALG910158
€56.69
Tax included
Including 0.10 € for eco-contribution
Sorry, no items left.
You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
The French flag indicates the current stock in our warehouse in France, therefore immediately available.
If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".
Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.
At your service
QUANTITY DISCOUNT
FREE SHIPPING
05 63 63 94 69HF-control TL5/TL-D/PL-L
High frequency electronic ballast for dimming,
using the analog protocol (1-10 V) for TL-D lamps
benefits
Possibility to increase the lamp power from 1 to 100% using the input analog control (according to the industry standard of 1-10 V)
Compliant with European and Asian norms and suitable for emergency lighting systems
HF operation improves the quality of light and the life of the lamp
Additional energy savings can become when combined with commands
functions
Programmed start: flicker-free ignition <0.5 second
and striation-free operation, no stroboscopic effects. Preheating the lamp electrodes enables on / off
they frequently without reducing life
The Smart power ensures constant light, independent of voltage fluctuations of
sector.
Energy consumption can be reduced up to 60% using automatic control systems lighting
Triggering a shutdown circuit within 5 seconds when lamp failure (safety stop), the ballast resets
automatically after lamp replacement
Application
Indoor lighting applications, and general work areas associated with lighting control systems (individual control connection to natural light and / or motion detection)
BALG910158
8711500910158
Data sheet
- FAMILY
- Accessoires
- USAGE ACC
- Alimentation
- Technology
- Fluorescence
- Equipment
- Ballast électronique
- Power supply
- French sector
- Ballast
info Vous indique pour quel type de lampe ce ballast convient:
ex: G13-T8/1x18w vous indique
- - le culot: G13
- - le type: T8
- - le nombre de lampe qu'il peut alimenter: 1
- - la puissance de la lampe : 18w
- 2G11-L/2x18w
2G11-L/2x36w
G13-T8/2x18w
G13-T8/2x36w - Average nominal lifespan
- 50000 H
- Manufacturer
- PHILIPS
- Dimmable
- Oui
- Height
- 21 mm
- Width
- 30 mm
- Overall lenght
- 360 mm
- Input voltage
- 220-240 v
- Type de Gradation
- 1-10v analogique
- Weight
- 0.29 Kgs
12
3.6 Kgs
- Length : 37 cm
- width : 29 cm
- height : 6 cm
