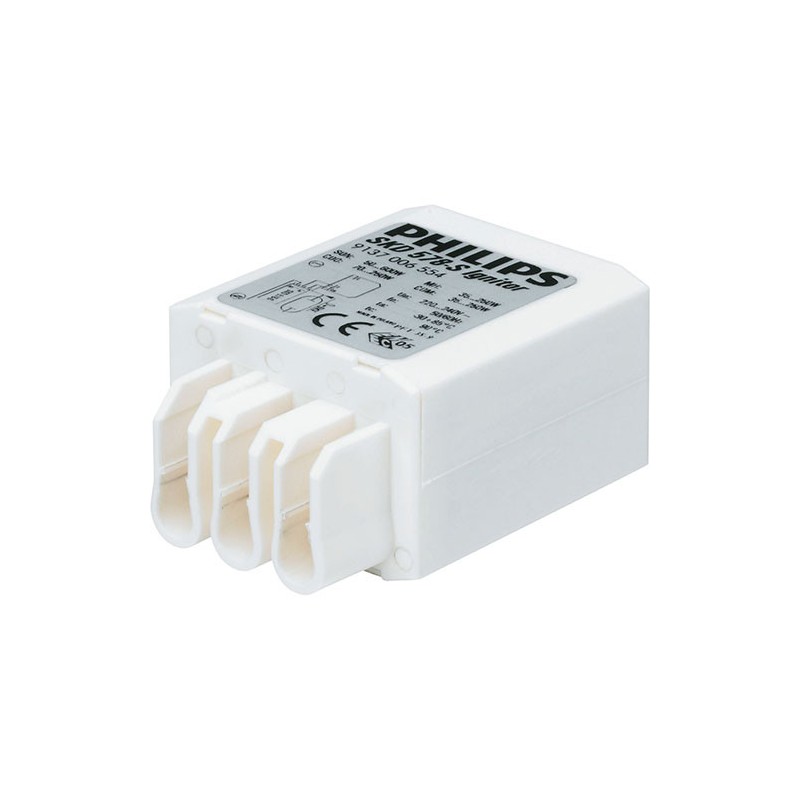

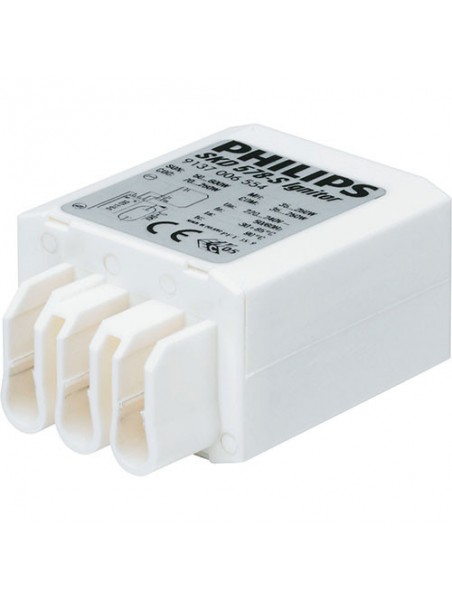

Ignitor SKD 578 35w - 600w 220-240V 50/60Hz PHILIPS




















          A020100898674

















           	          €26.20


















              Tax included















          	Not returned or exchanged item









                             Hurry up! Only
                5
                 item(s) left in Stock!


            You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.




           	The French flag indicates the current stock in our warehouse in France, therefore immediately available.
            If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".



            Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.

Some suppliers do not wish to communicate their stocks beyond 200 pcs.

Some suppliers do not communicate their stocks.














































 Stock available immediately: 5


 European stock available quickly: 15









                            QUANTITY

                                                                                    1 to 9

                                                                                                   10 to 19
                                                                                                    20 and +





                            UNIT PRICE (excVAT)
                                                        	                                	€21.83
                                                                                                    €20.74
                                                                                                    €19.65





                                UNIT PRICE (incVAT)
                                                                	                                    	€26.20
                                                                                                                €24.89
                                                                                                                €23.58


















Estimated shipping Day: 1 to 3 days





        Quantity































0




























































At your service










 QUANTITY DISCOUNT











 FREE SHIPPING















 SECURE PAYMENT

















 05 63 63 94 69
































General Characteristics



Number of Lamps 1 piece


Nom. ballast-lamp 35-600


Lamp type SON / CDM / MH / HPI / HPA / CDO


Application code 578


Voltage 220-240 V


Frequency 50/60 Hz


Operating characteristics



Type Semi-parallel boot


Voltage range AC -10% / +10%


Range of tens. pr perf = 100% AC -8% / +6%


Number of firing pulses x 1


Ballast power loss 0.5 W


Minimum voltage for 190 V pulse


Maximum ignition time 1185 (max) s


Number of amor. stop before 3 -


Ignition Voltage 1.80 (min) 5.00 (max) kV


Wiring Specifications



Screw type connector


6.0 mm thread


Wcs Ballast 0.50-2.50 mm2


Temperature characteristics



T-case maximum 90 (max) C


Temperature -30 (min), 85 (max) C


Storage temperature -35 (min), 85 (max) C


Dimensions in mm.



Length A1 67.5 mm


40.5 mm Width B1


C1 28.0 mm height


Characteristics approval



EC declaration Yes


Yes ENEC certificate



















        A020100898674








             8727900771312






















Data sheet




FAMILY




Accessoires



Connectique




3 Pôles



Equipment




Amorceur



Power supply




French sector



Manufacturer




PHILIPS



Dimmable




Non



Height




28
									mm



Width




40.5
									mm



Overall lenght




67.5
									mm



Operating range




-30 +85
									°C



Power




35 - 600
									w



Input voltage




220-240
									v



Technology type




Iodure métallique

Sodium haute pression



Weight




0.032
									Kgs



























                     1




                     0.032 Kgs








  • Length : 6.75 cm
    •

  • width : 4.05 cm
    •

  • height : 2.8 cm
    •
