  • PHILIPS
Non contractual photo

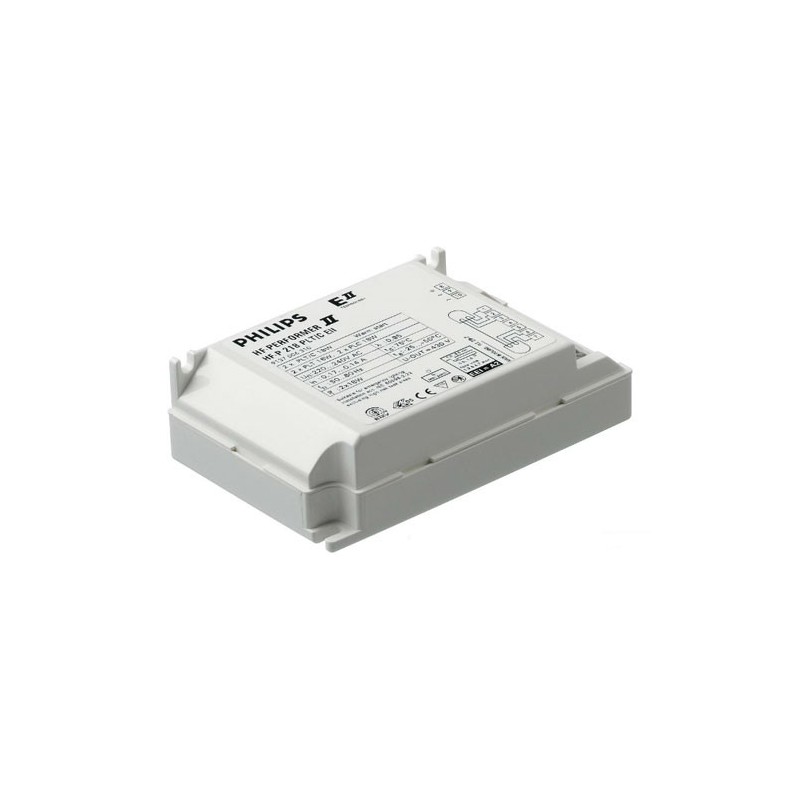

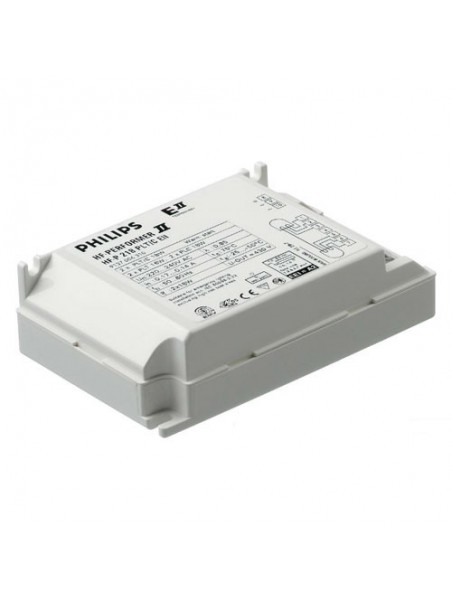

Electronic Ballast for T5C=1x22w/1x40w DE=26w 2D=38w TE=1x26/32/42w L=1x18/24w Philips

HF-Performer 1 22-42 PL-T/C/L/TL5C EII 2 Philips
BAL913975
€22.78
Tax included

Including 0.10 € for eco-contribution

Not returned or exchanged item
 Hurry up! Only 16 item(s) left in Stock! You can order items that we do not have in stock (unless explicitly stated), but you must place an order to replenish stock.

The French flag indicates the current stock in our warehouse in France, therefore immediately available. If this indicates "0", we will have to restock from our supplier according to your order and this implies an approximate time shown below in "shipping day".

Several of our suppliers tell us their stock status once a day and we communicate them after the European flag. This provides more information on restocking times.
Some suppliers do not wish to communicate their stocks beyond 200 pcs.
Some suppliers do not communicate their stocks.

Stock available immediately: 16
European stock available quickly: 62
QUANTITY 1 and +
UNIT PRICE (excVAT) €18.98
Net price (incVAT)
Eco-contribution included
€22.78
Estimated shipping Day: 4 to 6 days
Quantity

1
At your service
QUANTITY DISCOUNT
FREE SHIPPING
SECURE PAYMENT
05 63 63 94 69

Features and Benefits

  • Unique benefits of the new Philips EII technology:
  • Programmed start: flicker-free, warm start circuit preheating (0.5 s) the lamp electrodes; this enables the lamps to be switched on and off without reducing usefu life
  • Smart power: constant light independent of mains voltage fluctuations
  • Unit is protected against excessive mains voltages and incorrect connections
  • Automatic stop circuit is activated within 5 seconds in case of lamp failure (safety stop); once the lamp has been replaced, the ballast resets automatically
  • Equipped with universal connector for both manual and automatic wiring
  • Optimized system efficiency, minimized ballast power losses
  • Miniaturised dimensions for HF-Performer compact gear range
  • Simplified standardized portfolio allowing flexible, modular luminaire design
  • Cooler product allows more compact luminaire design
  • Fast preheat for short ignition time (0.5 s)

Applications

  • Ideal for applications with high switching frequency, typical application areas include:
  • Use with infrared remote control systems (e.g.movement detection)
  • Department stores, shops, supermarkets, hotels, hospitals, office buildings, industrial premises
BAL913975
8711500913975

Data sheet

FAMILY
Accessoires
USAGE ACC
Alimentation
Technology
Fluorescence
Equipment
Ballast électronique
Power supply
French sector
Ballast
info Vous indique pour quel type de lampe ce ballast convient:
ex: G13-T8/1x18w vous indique
  • - le culot: G13
  • - le type: T8
  • - le nombre de lampe qu'il peut alimenter: 1
  • - la puissance de la lampe : 18w
Dans cet exemple, le ballast peut donc alimenter un seul tube G13 de 18w
2G11-L/1x18w
2G11-L/1x24w
2GX13-T5C/1x22w
2GX13-T5C/1x40w
G10Q-T8C/1x22w
G10Qb-1x40w
GR10Q-DD/1x38w
GX24Q-TE/1x26w
GX24Q-TE/1x32w
GX24Q-TE/1x42w
Average nominal lifespan
50000 H
Manufacturer
PHILIPS
Power factor
0.95
Dimmable
Non
Height
30 mm
Width
67 mm
Overall lenght
103 mm
Input voltage
220-240 v
Weight
0.14 Kgs
12
1.8 Kgs
  • Length : 21.5 cm
  • width : 22 cm
  • height : 9 cm
